Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR

Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR
Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR

Large Image :  Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY24-210-840
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR

Description
Product Name: Automatic Double Layer Corrugated & IBR Roofing Tile Sheet Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 8-12m/min Hydraulic Power: 3kw
Machine Power: 3kw Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

metal roofing equipment

,

metal sheet roof roll forming machine

Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR



Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set


Decoiler



(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ508 – Φ610 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs



roll forming


Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 13/ 15 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ700mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 5.5kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm



Cutting


Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision


Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type



Stacker


Type

Manual

 Auto(option)

Length 1.5m-2m 6m or 12m



PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

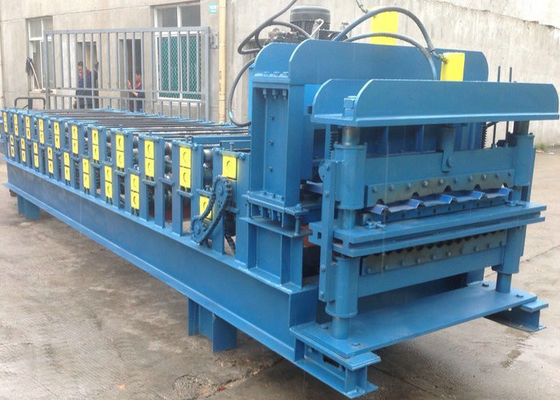

Machine Photo



Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR 0



Packing & Loading Photo

Automatic Roofing Sheet Roll Forming Machine Double Layer Corrugated and IBR 1
