Product Details:
|
| Product Name: | K Type Aluminium/PPGI Gutter Roll Forming Machine For Take Roof Rainwater | Machine Dimention: | 9mx1.4mx1.4m |
|---|---|---|---|
| Control System: | PLC | Warranty: | 2 Years |
| Life Time: | More Than 10 Years | Material: | PPGI/ GI |
| Cutting Type: | Hydraulic | ||
| High Light: | cold roll forming machine,profile roll forming machine |
||

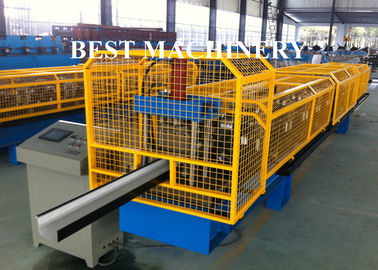

K Type Aluminium/PPGI Gutter Roll Forming Machine For Take Roof Rainwater
Application

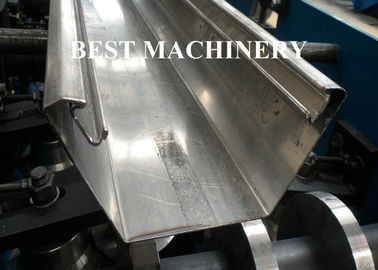

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
Working flow
Decoiler----feeding----roll forming----cut to length----output table
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Pressing die---------------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Width | 500mm | 600mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ450-550mm | φ450-550mm |
| Outer diameter | φ1500mm | φ1800mm |

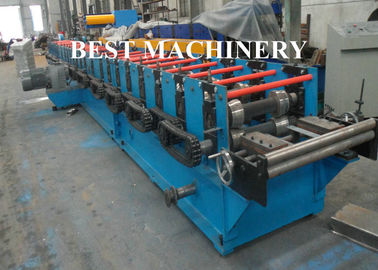

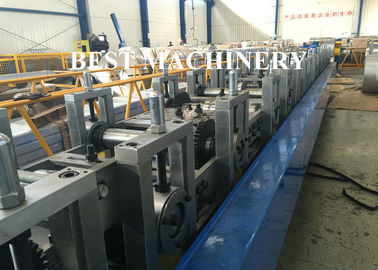

roll forming
(1)Material Thickness: 0.4-0.8mm
(2)Rollers: 18steps
(3)Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
(4)Material for shaft: high grade No.45 steel after treatment
(5)Diameter of shaft: 70mm
(6)Frame panel thickness: 20mm
(7)Bottom frame: 36# H-section steel
(8)Motor Power: 5.5 kw
(9)Driven type: 1.0＂Chain
Cutting
| Type |
Mould type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
Auto(option) |
| Length | 2 pieces | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
