95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style

95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style
95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style 95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style 95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style 95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style

Large Image :  95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY77
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style

Description
Product Name: 95 / 77 / 55 PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style Usage: Floding Door
Power: 5.5+3kw Machine Dimention: 5.5mx1mx1.4m
Warranty: 2years Driven System: Chain Or Gear Box
Life Time: More Than 10 Years
High Light:

cold roll forming machine

,

profile roll forming machine



95 / 77 / 55 PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style



Working flow



Decoiler-------roll forming--------foaming-------roll forming ------cut to length-----output table


Machine components


De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Foam device--------------------------------------1set

Flying saw----------------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set

Remote control--------------------------------- 1 set


Decoiler



Type Manual type(standard) Hydraulic type(option)
Width 300mm 500mm
Capacity From 3-5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm

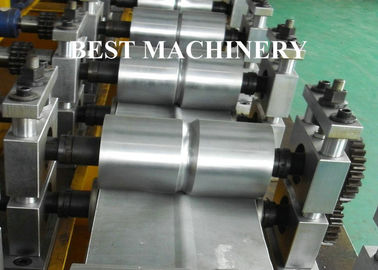

roll forming


(1) Material Thickness: 0.25mm
(2) Rollers: 35 Groups
(3)Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4)Material for shaft: high grade No.45 steel after treatment

(5)Diameter of shaft: 55mm

(6)Frame panel thickness: 14mm

(7)Bottom frame: 36# H-section steel
(8)Motor Power: 7.5 kw

(9)Driven type: 1.0"Chain
(10)Machine size: L*W=25m*0.85m

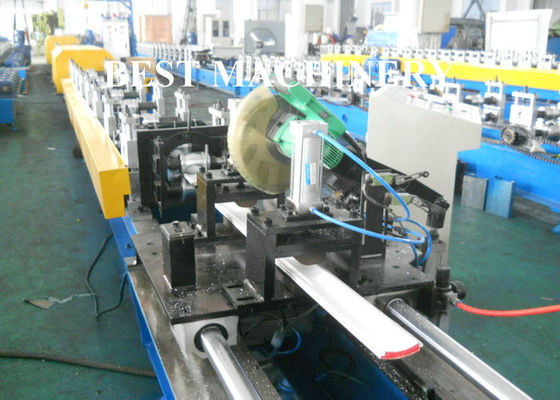

Cutting


Type

Saw cutting

Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type



Stacker


Type

Manual

 Auto(option)

Length 1.5m-2m 6m or 12m



PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase



Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request

Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan



Sales Service



1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.

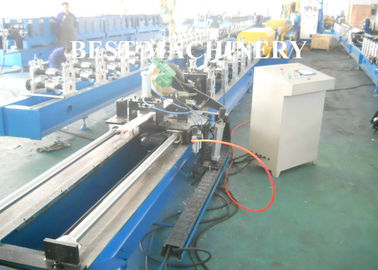

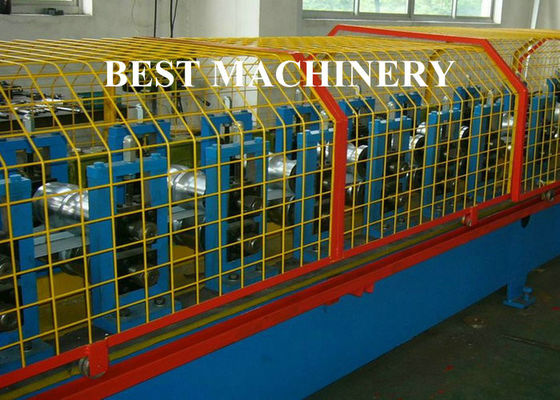

Machine Photos



95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style 0



95/77/55mm PU Foam Roller Shutter Door Slate Roll Forming Machine Euro Style 1
