Product Details:
|
| Product Name: | Classic Glazed Roof Ridge Cap Tile Roll Forming Making Machine Rain Gutter | Machine Speed: | 8-12m/min |
|---|---|---|---|
| Machine Dimention: | 5.5mx1mx1.4m | Machine Power: | 3kw+3kw |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Pressing Type: | Hydraulic | ||
| High Light: | ridge cap forming machine,ridge cap machine |
||
Classic Glazed Roof Ridge Cap Roll Forming Machine Rain Gutter 5.5mx1mx1.4m Dimention
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Pressing and Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Parameter
1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ508 – Φ610 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 14 groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 14mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw
(9) Driven type: 0.6＂Chain
(10) Speed: about 6m/min
3.PRESSING DEVICE
Stop to press, Post to press
Press tool material: Cr12 steel heat-treated
(3)Motor for Hydraulic Stand:3 kw
4.CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel
(2)Hardness for Heat Treatment:HRC55 – 60℃
(3)Motor for Hydraulic Stand:3 kw
5.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4) Length Error: ±2mm
(5) Language: English and Chinese
(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
6. HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand
PLC Oil pump
7. PRODUCTION SUPPORT TABLE
(1) No power type
(2) Length: 2m
8. Spare part
Chain x1; Bearing x 1; limit switch x1
| Working conditions | |
| 1.working size | 15m x 2m x 4m |
| 2.Power supply | 6kw |
| 3.Frequency | 50-60HZ |
| 4.Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7.Lift device | 3-5t forklift or crane |

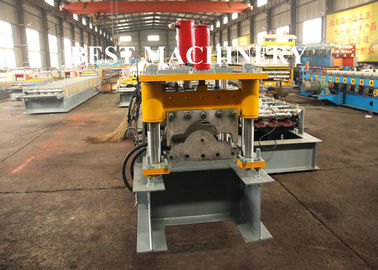

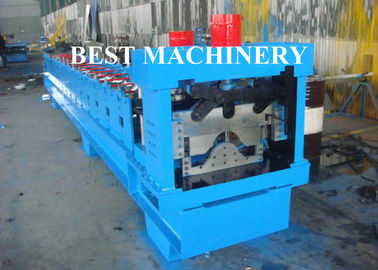

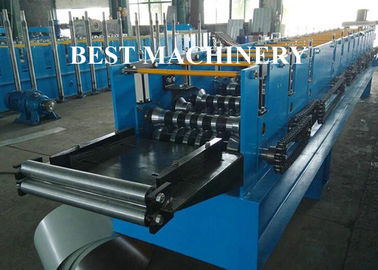

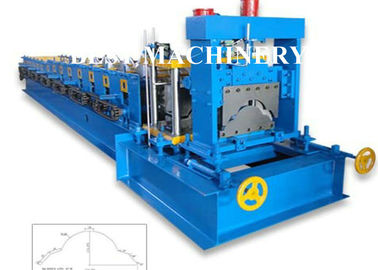

Photos
Installion
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
Contact Person: Mr. Arno Hao
Tel: +8618717894416
