Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel

Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel
Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel

Large Image :  Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY 35
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel

Description
Product Name: Auto Solar Rack Angle Shape Roll Forming Machine Stiffen Channel Life Time: 10years
Warranty: 2years Machine Power: 5.5kw+3kw
Driven System: Chain Or Gear Box Control System: PLC
High Light:

cable tray production line

,

steel profile roll forming machine


Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel


Machine components list:


Name NO. Unit
1. De-coiler 1 set
2. Forming machine 1 set
3. Punching device 1 set
4. Cutting device 1 set
5. PLC control box 1 set
6. Hydraulic pump station 1 set
7. Production support table 1 set


Techincal description:

3T manual decoiler:
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 420mm—510mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

Forming section

Profile steel thickness: 0.4-0.7mm GI sheet
Main motor power:4kw, AC motor, side motor to save space (Brand: Guomao which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station: about 8stations +1 station of rectify (according the final design)
Roller material:SAE1045, hardness and chrome plated surface
Shaft diameter: ¢56mm material: SAE1045
Machine roll forming speed:0-15m/min (not including punching and cutting time)
Machine base frame adopt H beam welding steel
Machine structure: adopt wall panel which is much stronger

Post cutting :

Cutting after forming: Cut the sheet after roll forming to required length
Uses one hydraulic cylinder for operation shall include a flow regulator to achieve a uniform lowering knife.
Material of blade: Cr12, 58-62 HRC hardness
Cutting power by hydraulic, 3KW
Working pressure: 12Mpa adjustable
Length measuring: Automatic encoder length measuring, brand: Omron
The cutting sequence is also contained and controlled by the same PLC program
Tolerance of length: +/- 1.5mm for each piece end product



Hydraulic station:


Hydraulic power: 3kw
Working pressure: 12Mp adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Quantity : 1


Control system


1) Programmable setting of profile length and quantity
2) Automatic stopping of the equipment after completion of the cutting programme.
3) Operating system language: English and Chinese
4) Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5) PLC brand: Panasonic


Working conditions
1. Machine size 8.5m x 1.8m (L XW)
2. Working size 16.5m x 3.5m (LXW)
3. Power supply 16.5kw
4. Frequency 50-60HZ
5. Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8. Lift device 5t forklift or crane


① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

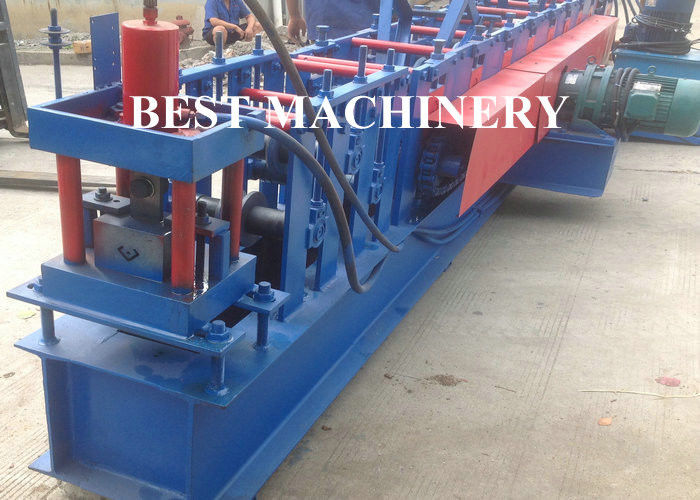

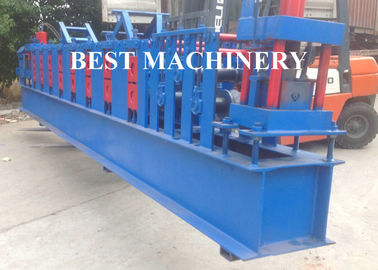

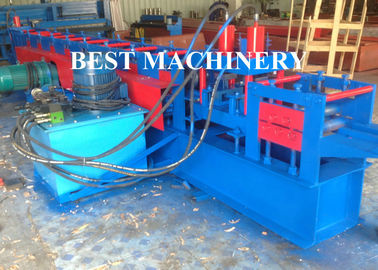

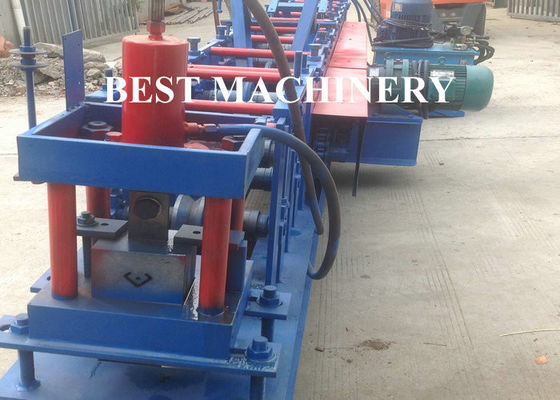

Machine Photo
Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel 0

Solar Rack Angle Shape Automatic Roll Forming Machine Stiffen Channel 1
