Product Details:
|
| Product Name: | Water Gutter Feeding Trough Channel Roll Forming Machine Aluminum | Control System: | PLC |
|---|---|---|---|
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| Material: | PPGI/ GI | Botttom Frame: | 360H Steel |
| High Light: | metal roll forming machine,cold roll forming machine |
||
Water Gutter Feeding Trough Channel Roll Forming Machine Aluminum
Application
The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
Working flow
Decoiler----feeding----roll forming----cut to length----output table
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Pressing die---------------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Parameter
| No. | main parameter of roll forming machine | ||
| 1 | Suitable to process | Color steel plate | |
| 2 | Width of the plate | 100-600mm | |
| 3 | Rollers | 14-16rows | |
| 4 | Dimensions | 8.6*0.8*1.2m | |
| 5 | Power | 4 | |
| 6 | Thickness of the plate | 0.3-0.8mm | |
| 7 | Productivity | 8-12m/min | |
| 8 | Diameter of the roller | 52mm | |
| 9 | Weight | About 4.5 T | |
| 10 | Voltage | 380V 50Hz 3phases | |
| 11 | Rolling material | Carbon Steel 45# | |
| 12 | Material of the cutting plate | Cr12 | |
| 13 | Processing precision | Within 1.00mm | |
| 14 | Control system | PLC control | |
CUT-OFF DEVICE
Material for Cut-Off Modular: Cr12 steel
Hardness for Heat Treatment: HRC55 – 60℃
Motor: 3kw
Type: hydraulic mould cutting
ELECTRONIC CONTROL SYSTEM
Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
RFQ
Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.

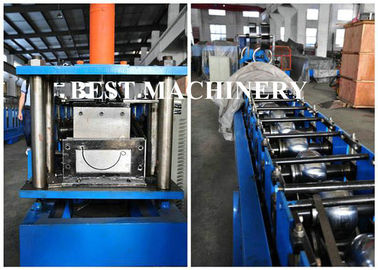

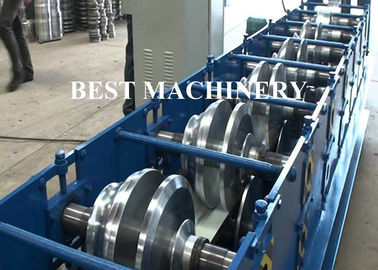

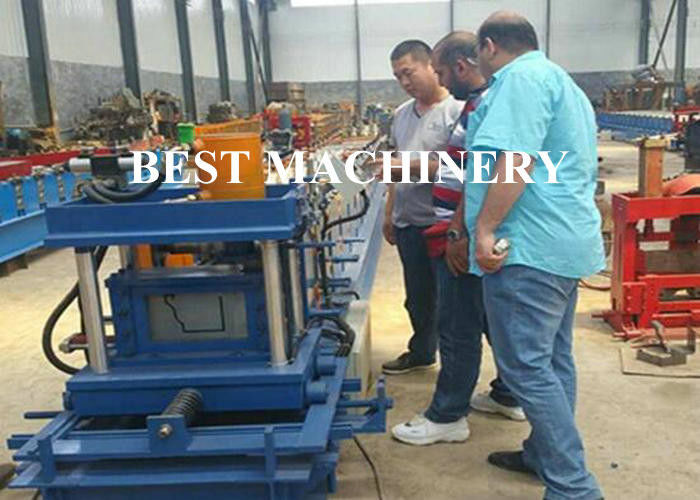

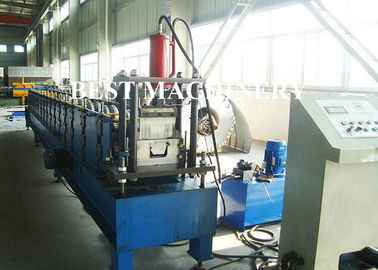

Machine Photos
