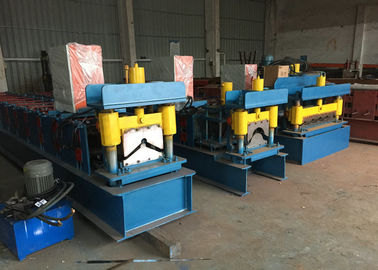

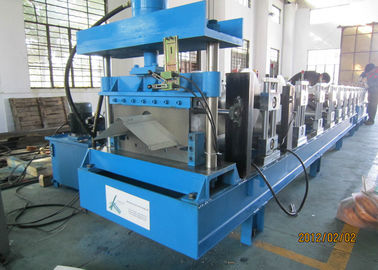

Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet

Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet
Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet
Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet

Large Image :  Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY470
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet

Description
Product Name: PPGI Color Steel Corrugated Roof Sheet Ridge Cap Roll Forming Machine Color: Blue Or As Your Request
Machine Power: 3kw+3kw Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
High Light:

ridge cap machine

,

steel roof tile forming machine

PPGI Color Steel Corrugated Roof Sheet Ridge Cap Roll Forming Machine


Machine components


No.NameQty
1.De-coiler1 Set
2.Roll Forming Machine1 Set
3.Hydraulic Cutting Device1 Set
4.PLC Control Box1 Set
5.Hydraulic Pump1 Set
6.Output table1 Set





Decoiler


TypeManual type(standard)Hydraulic type(option)
Width1250mm1500mm
CapacityMax 5tonsFrom 5-15 tons
Inner diameterφ508-610mmφ508-610mm
Outer diameterφ1500mmφ1800mm

roll forming


ItemParameter detail
Processing MaterialGI and PPGI
Material thickness0.25-0.8mm
Machine frame360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate typePillar type(option)
Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet 0Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet 1
Plate thickness:20mmPillar thickness:30mm
Painting:normal paintingpainting:Chroming



Forming stations10-22 stations(according to the profiles)

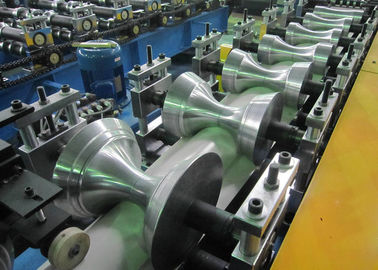

Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaftφ60-70mm high garde No.45 steel after treatment,
Machine spacersCNC lathing in high-precision
Machine bearingsChina Haerbin bearing or SKF international bearing(option)
Driving system1 inch chain or gear box(option)
Machine power3kw-5.5kw(according to the profiles)
Machine working speed8-12m/min or 10-30m/min(option)
Machine adjust typeAfter machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

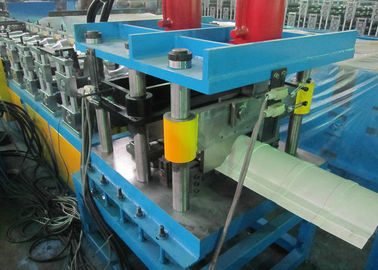

Cutting


Type

bearing sliding type
Ridge Cap Roll Forming Machine PPGI Color Steel Corrugated Roof Sheet 2

Blade materialCr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processingwire-electrode cutting, but the upper balde can not be straight. this is technology
WorkingHydraulic type

Stacker


Type

Manual


 Auto(option)


Length1.5m-2m6m or 12m

PLC


Main itemParameter detail
PLC

Delta(standard) or according to your request


InverterChina brand(standard) or according to your request
Touch screenMcgs(standard) or according to your request
EncoderChina brand(standard) or according to your request
Voltage/HZ/Phase380v/50-60hz/3phase

Hydraulic pump


Main ItemParameter detail
Motor

3kw China brand or according to your request


PumpChina brand or according to your request
Solenoid valveChina brand or according to your request
Cooling system

Cooling fan



FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
