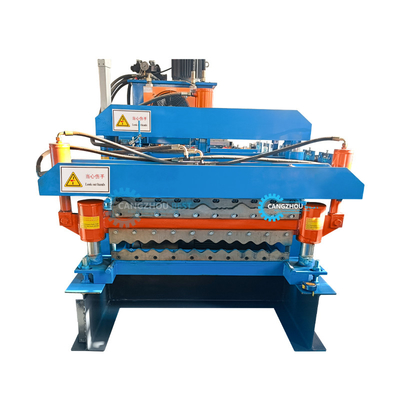

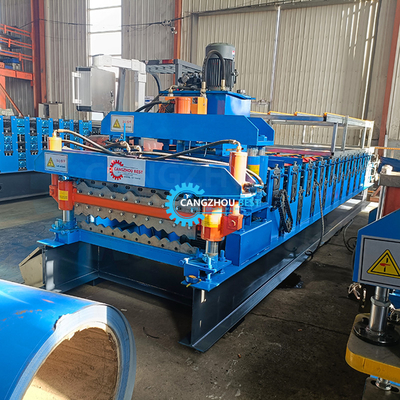

Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device

Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device
Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device
Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device

Large Image :  Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY18-76-836
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device

Description
Product Name: 2017 New Style Color Steel Trapezoidal IBR Sheet Roof Tile Wall Panel Roll Forming Machine Color: Blue Or As Your Request
Machine Power: 3kw+3kw Cutting Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
Key Selling Points: Easy To Operate Screen: Color Touch Screen
Cutting Blade: Cr12 Payment Term: TT
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device



Working flow
Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device 0
Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set


Decoiler


Type Manual type(standard) Hydraulic type(option)
Photo Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device 1 Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device 2
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

roll forming


Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 13-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Stacker


Type

Manual



Auto(option)



Length 1.5m-2m 6m or 12m


PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase


FAQ

1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4) Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.



Application:

Color Trapezoidal IBR Steel Roof Roll Forming Machine Hydraulic Cutting Device 3
