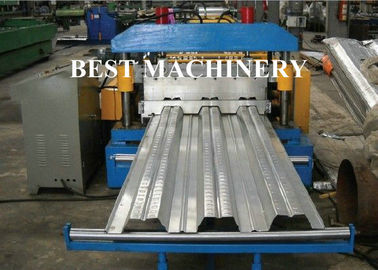

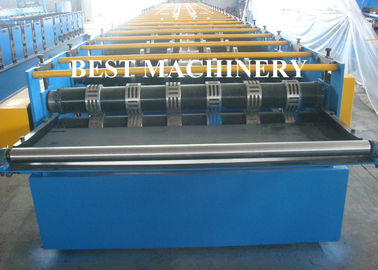

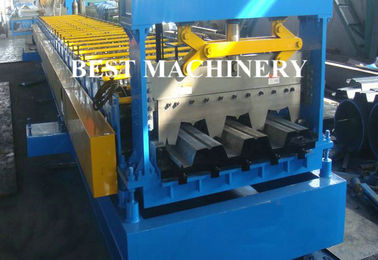

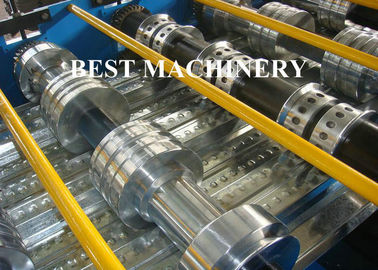

Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine

Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine
Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine

Large Image :  Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY610
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $22500-$33800/set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine

Description
Product Name: Galvanized Steel Floor Tile Decking Sheet Roll Forming Machine Machine Dimention: 11.5mx1.4mx1.4m
Machine Power: 11kw Control System: PLC
Cutting Type: Hydraulic Warranty: 2 Years
High Light:

cold roll forming machine

,

sheet roll forming machine



Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine



Working flow



Decoiler----feeding----roll forming----pressing----cut to length----output table


Main parameters:



1: Our advantageous:

1: Factory direct supply price.

2: We have exported for more than 10 years.

3: Our customer are from about 40 countries.

4: We have the professional research team. We can make the machine according to your requirement.

5: High-end and high-grade design 6: Free technical support and Freeaccessoies supply.



Technical parameters:
1 Name of commodity & specification XN- 720 deck roof machine with high quality low price
2 Main motor power 11kw, 3 phase
3 Hydraulic motor power 5.5kw
4 Hydraulic Pressure 18-20MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 450mm H-Beam
8 Backboard Thickness 22mm
9 Chain Size 66mm
10 Feeding Material color steel coils
11 Feeding Thickness 0.8-1.2mm
12 Feeding Width 1000mm
13 Effective width 720mm
14 Productivity 8-10m/min
15 Roll Station 27
16 Roller Diameter 95mm
17 Roller material 45# steel
18 Cutter material Cr12 , quenched
19 Cr-Plating Size 0.05mm
20 Overall Size 15000×1200×1100mm
21 Total Weight 19T
22 Components

Manual Uncoiler-------------------1 set

Guiding Platform------------------1 set

Main Machine of Roll Forming--1 set

Electric-Motor---------------------1 set

Cutting Device--------------------1 set

Hydraulic Station------------------1 set

PLC Control-----------------------1 set

Supporter Table-------------------1 set

23 Workflow

Manual decoiling----feeding and guiding----

roll forming----cut to length----run out table


Service



① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.





RFQ



Q: Can you make the product according to my design or proto type?


A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us



Q: Are you a factory or trading company ?



A: We are a factory?



Q: How do you guarantee the quality of the products?



A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory



Every one of our products have strict testing procedures, must be 100% quality assurance.



Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine 0Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine 1
