11kw Power Door Frame Roll Forming Machine / Bending Making Machine

China 11kw Power Door Frame Roll Forming Machine / Bending Making Machine supplier
11kw Power Door Frame Roll Forming Machine / Bending Making Machine supplier 11kw Power Door Frame Roll Forming Machine / Bending Making Machine supplier 11kw Power Door Frame Roll Forming Machine / Bending Making Machine supplier 11kw Power Door Frame Roll Forming Machine / Bending Making Machine supplier

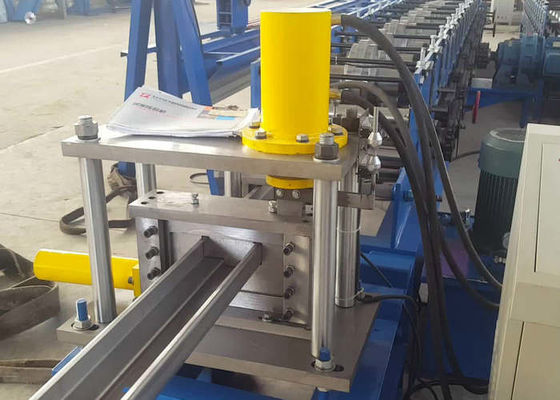

Large Image :  11kw Power Door Frame Roll Forming Machine / Bending Making Machine

Product Details:

Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY50-150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Product Name: Galvanized Steel Door Frame Roll Forming Bending Making Machine Color: Blue Or According To Your Request
Driven System: Chain Or Gear Box Cutting Type: Hydraulic
Shaft Diameter: 70mm Power: 11kw

11kw Power Door Frame Roll Forming Machine / Bending Making Machine





Working flow


Decoiler---------leveling--------punching---------roll forming--------cut to length----------output table





Machine components:



No. Name Qty.
1 Decoiler  1set
2 Feeding and guiding device 1set
3 Roll forming machine  1set
4 Punching machine with servo feeding  1set
5 Hydraulic cutting device  1set
6 PLC control box  1set
7 output table 1set


Techincal description:



A Manual decoiler



(1) Inner Diameter: Φ450 – Φ550 mm
(2) Out Diameter: 1500 mm
(3) Max. Loading Capacity: 3000 kg





B. Main roll forming





Roll Forming M/C

1

Forming Steps

45-steps

2

Line Speed

10 to15m/min

3

Stand

Independent stand structure  (raft structure)

4

Drive

1''chain

5

Material of Roller

45# steel polished and coated with chrome HRC55-60°

6

Shaft Diameter

100 to110mm

7

Shaft material

 high grade No.45 steel after treatment

8

Main Motor Power

About 15KW

9

Voltage

380V/50HZ/Three Phase



C Cutting device



1) Cutting: Hydraulic cutting

2) Auto cutting when reach the set length.

3) Hydraulic power: 7.5KW

4) Blade material: Cr12,quenched 55°-60°

5) Working pressure:16mpa

6) Cutting tolerance: +/- 1.5mm



D Punching



1) Hydraulic punching AFTER roll forming

2) Power:7.5kw



E Control system



Main item Parameter detail
PLC Delta(standard) or according to your request

Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase













RFQ



Q: Can you make the machine according to my design or proto type?


A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us



Q: Are you a factory or trading company ?



A: We are a factory?



Q: Where is your factory located?



A: Our factory is located in Botou City,Hebei Province, China. All our clients, from home or abroad, are warmly welcome to visit us !



Q: How do you guarantee the quality of the products?



A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory



Every one of our products have strict testing procedures, must be 100% quality assurance.



Q: How can we be assured that you will deliver us quality machine with spare parts?


A: 1. Customers to send the technical people to our factory for checking the quality.



2. We can send the technicians to the buyer`s factory for the installation of the machine.



3. Good aftersales-service, its free of charge during the warranty period.
