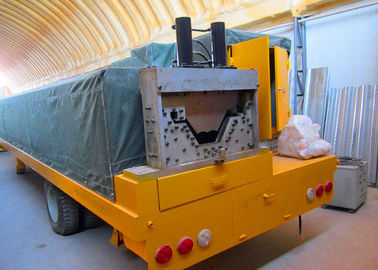

Construction Sheet Roll Forming Machine 914-610 Large Roof Span Color

Construction Sheet Roll Forming Machine 914-610 Large Roof Span Color
Construction Sheet Roll Forming Machine 914-610 Large Roof Span Color Construction Sheet Roll Forming Machine 914-610 Large Roof Span Color Construction Sheet Roll Forming Machine 914-610 Large Roof Span Color Construction Sheet Roll Forming Machine 914-610 Large Roof Span Color

Large Image :  Construction Sheet Roll Forming Machine 914-610 Large Roof Span Color

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: Mic120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

Construction Sheet Roll Forming Machine 914-610 Large Roof Span Color

Description
Product Name: 914-610 Large Roof Span Color Sheet Construction Roll Forming Machine Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

k span forming machine

,

arch sheet roll forming machine

Construction Sheet Roll Forming Machine 914-610 Large Roof Span Color


Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set
7 Crimping machine 1 Set





Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

roll forming


Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 13-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

(1) Type: Mechanical cutting

(2)Material for Cut-Off Modular:Cr12 steel after treatment
(3)Power:3kw

Stacker


Type

Manual



Auto(option)



Length 1.5m-2m 6m or 12m



PLC

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: made in china
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan
