Product Details:
|
| Product Name: | Austria Seaming Lock Roller Door Roll Forming Machine Garage Door Line | Color: | Blue Or As Your Request |
|---|---|---|---|
| Power: | 5.5+3kw | Machine Dimention: | 5.5mx1mx1.4m |
| Warranty: | 2years | Driven System: | Chain Or Gear Box |
| Life Time: | More Than 10 Years | ||
| High Light: | hydraulic crimping machine,hydraulic cutting machine |
||

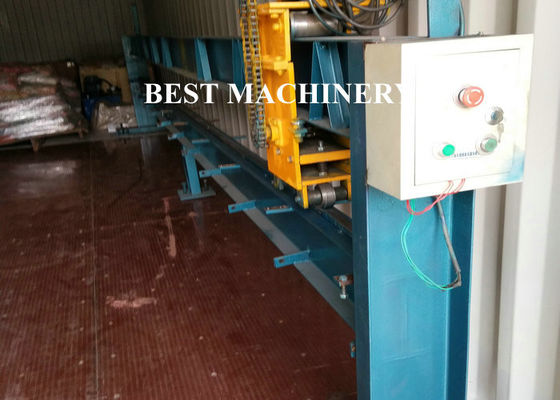

Austria Seaming Lock Roller Door Roll Forming Machine Garage Door Line
Working flow
Decoiler---------feeding--------roll forming--------cut to length--------multi revising-----output table
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device-----------------------------------1set
Multi revising device---------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Width | 300mm | 500mm |
| Capacity | From 3-5tons | From 5-15 tons |
| Inner diameter | φ450-550mm | φ450-550mm |
| Outer diameter | φ1500mm | φ1800mm |
Roll forming machine
| Suitable to process | Color steel plate |
| Width of the plate | 100-550mm |
| Rollers | 12rows |
| Dimensions | 4600*950*1110mm |
| Power | 4+4kw |
| Thickness of the plate | 0.3-0.8mm |
| Productivity | 10-15m/min |
| Diameter of the roller | Φ65mm |
| Weight | About 3.8T |
| Voltage | 380V 50Hz 3phases |
| Material of the cutting plate | Cr12 |
| Hydraulic | 40# |
| Processing precision | Within 1.00mm |
| Control system | PLC control |
Cutting
| Type |
Mould cutting type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
After-sales service
Technical Support
Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.
Spare Parts
Promptly providing spare parts and wearing parts.
Upgrade
Improve technology and upgrade of equipments.
