Product Details:

Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY125

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Product Name: 6 Inch Roofing Rain Gutter Roll Forming Machine PLC Control Cutting Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
Material: PPGI/ GI Roller Material: 45#steel



6 Inch Roofing Rain Gutter Roll Forming Machine PLC Control Cutting




Application
The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Working flow

Decoiler----feeding----roll forming----cut to length----output table


Machine components



Name qty.
Decoiler  1set
Roll forming machine 1set
Cutting device 1set
PLC Control system 1set
Oil pump  1set
Output table 1set



Technical Data


1). Decoiler
Decoiler Type: Manual decoiler
Manual expanding
Impassive decoiling
Weight capacity:3 Ton

2). Feeding Device
Function: It is used torelease the head of coil and feed into the forming machine.

3). Roll Former
Main Principal Axis Diameter: ¢76mm
Forming Roller stand: 15 Groups
Main Axis material: First grade 45# steel, heated and quenched
Roller material: High grade 45# Steel, Quenched and heated process, surface with 0.05mm hard chrome.
Forming Speed: 0-15 m/min
Dive Type: Chain of transmission
Chain Material: 45# steel.
Machine Frame stand: Welded structural steel
Machine Base: 36# H shape steel
Thickness of Fame Steel: S18mm

 Main Power: 5.5KW

4) Cutting Device & Hydraulic Station
Cutting type: Hydraulic cutting
Hydraulic power: about 4Kw

Hydraulic Blade and cutter material: C r12 Mov, quenching process
Cutting length tolerance: +/- 2mm

5). Electrical System
Voltage: 380V, 3 Phase 50Hz
PLC Electrical control system: Japanese Panasonic PLC Board
Encoder Frequency Control System: Panasonic Brand
Touch Screen: Panasonic Brand
Transducer: ABB
Size of PLC Control Board: 700mm(L)x1000mm(H)x300mm(W)

6). Support Table
Simple Nonpower support table
To support the profile after cutting

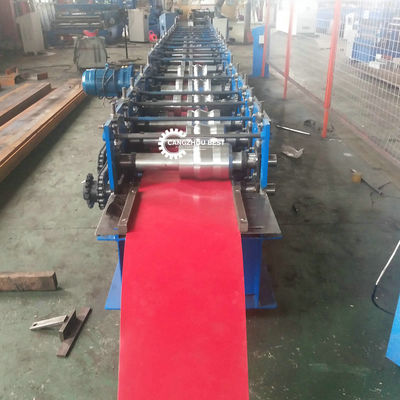

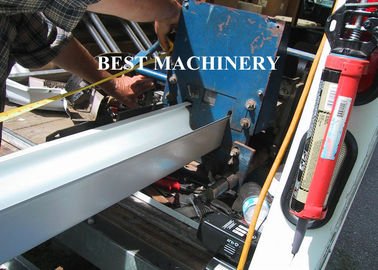

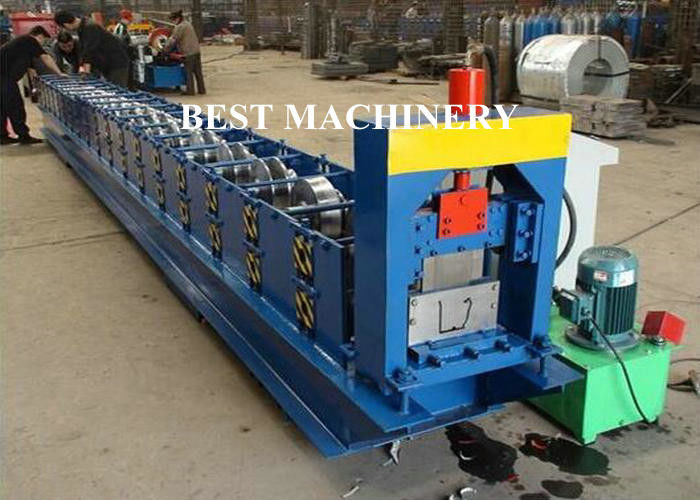

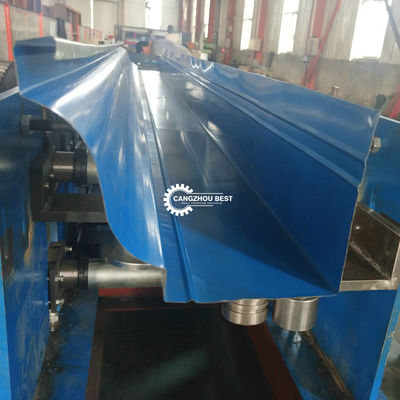

Machine Photos



6 Inch Roofing Rain Gutter Roll Forming Machine PLC Control Cutting



6 Inch Roofing Rain Gutter Roll Forming Machine PLC Control Cutting
