Product Details:
|
| Name: | Ceiling Light Steel Keel Metal Stud Making Roll Forming Machine | Power: | 6kw |
|---|---|---|---|
| Material: | PPGI/GI | Control System: | PLC |
| Color: | As Your Requires | Warranty: | 2 Year |
| High Light: | profile roll forming machine,metal stud roll former |
||

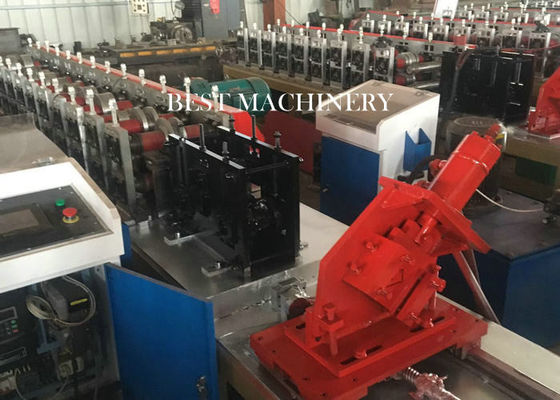

Ceiling Light Steel Keel Metal Stud Making Roll Forming Machine
Working Flow
Decoiler--Feeding--Roll Forming--Cutting--Output Table
Machine Components
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| PLC Control System | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
Machine Parameter
Decoiler
| Width | 500mm |
| Inner diameter | 450-550mm |
| Outter Diameter | 1500mm |
| Capacity | 5000kg |
| Type |
Hydraulic Or Manual (Optional) |

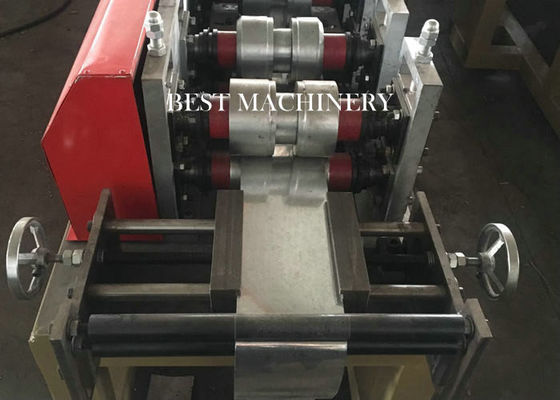

Roll Forming Machine
| Roller Material | Cold Roller Steel Sheet |
| Material Thickness | 0.5-1.2mm |
| Roller Steps | 10 Groups |
| Material For Rollers |
Cr 12 steel polished and coated with chrome HRC58-62° |
| Material For Shaft | 45#steel |
| Hardness For Heat Treatment | HRC55-60° |
| Diameter Of Shaft | 80mm |
| Frame Panel Thickness | 20mm |
| Bottom Frame | 360#H-section steel |
| Rolling Speed | 8-12m/min |
| Cutting Type |
Mould Cutting |
Cutting Device
Power: 3kw
Driven: 1 inch chain
Material for Cut-Off Modular:Cr12 steel after treatment
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Hydraulic Pump
Power: 3kw
Oil Type: 46# hydraulic oil
Pump Brand: China Brand
Output Table
Length: 6m
It is simple and used to load finished product.
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Packing Detall
1. 1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
Other Product
Specializing in the production of automatic c-beam machine, CZ steel machine, roof panel equipment swap, LouCheng board equipment, glazed tile,high-speed guardrail equipment, double caigang watts, doors equipment , light steel keel equipment, solar photovoltaic equipment, water stop plate equipment, rail fence equipment, cullis sink devices, automatic doors, ridge tile equipment, sandwich composite machine, shearing machine, bending machine, slitting machine other caigang watts and cold bending forming equipment.
Our Service
| Payment type | 30% T/T prepaid and balance should be paid before loading |
| Delivery time | 30days after receving advance payment. |
| Guarantee period | 18months free service/ pay service all the machine life |
| Installation and training |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. video to teach you to install and operate. please arrange board and lodging and other necessary things |
