High Speed Furring Channel Roll Forming Machine For Ceiling Drywall

High Speed Furring Channel Roll Forming Machine For Ceiling Drywall
High Speed Furring Channel Roll Forming Machine For Ceiling Drywall High Speed Furring Channel Roll Forming Machine For Ceiling Drywall High Speed Furring Channel Roll Forming Machine For Ceiling Drywall High Speed Furring Channel Roll Forming Machine For Ceiling Drywall

Large Image :  High Speed Furring Channel Roll Forming Machine For Ceiling Drywall

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-50
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD12500-35500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

High Speed Furring Channel Roll Forming Machine For Ceiling Drywall

Description
Name: Most Popular Furring Channel Roll Forming Machine For Ceiling Drywall Condition: New
Weight: 2t Use: Roof
Production Capacity: 8-12m/min Place Of Origin: Hebei,China
Power(W): 3+3kw Warranty: 2years
High Light:

profile roll forming machine

,

metal stud roll former

Most Popular Furring Channel Roll Forming Machine For Ceiling Drywall





1. What is the technical parameters of the omega roll forming machine?



Technical parameters:
1 Hydraulic motor power 3kw,4kw
2 Hydraulic Pressure 10-12MPa
3 Voltage 380V /3phase/ 50 HZ (or as your requirement)
4 Cutting drive Decelerating motor + Chain drive gear all by high-frequency
5 Control System Panasonic /Siemens / Schneider / Delta PLC
6 Length measurement Encoder
7 Main Frame 300mm/350mm H-Beam or 350mm
8 Backboard Thickness 17mm/20mm
9 Chain Size 1inch/2inch
10 Feeding Material Better as your drawing or from our designer
11 Feeding Thickness 0.18mm-0.8mm
12 Effective width Better as your drawing or from our designer
13 Productivity 12-20/min
14 Roll Station 10rows(according to different design)
15 Roller Diameter 40mm(depend on different design)
16 Roller material 45# steel
17 Cutter material Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees
18 Total Weight 2t-12t
19 Package of machine Waterproofing membrane, standard export packing
20 Roll fromiomg machine of theComponents

Manual decoiler-------------------1 set(5t)

Guiding Platform------------------1 set

Main Machine of Roll Forming------1 set

Hydraulic Station------------------1 set

Supporter Table-------------------1 set

21 machine technical parameters can be changed, according to customer's need.



2. Working flow:

High Speed Furring Channel Roll Forming Machine For Ceiling Drywall 0

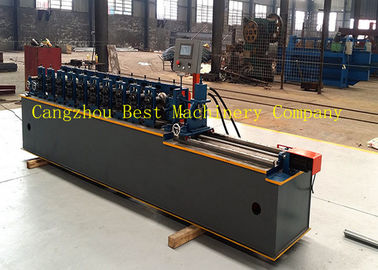

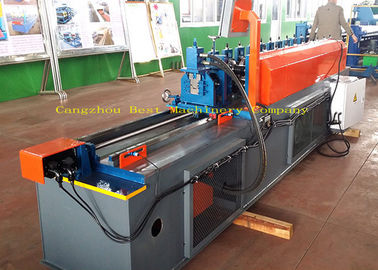

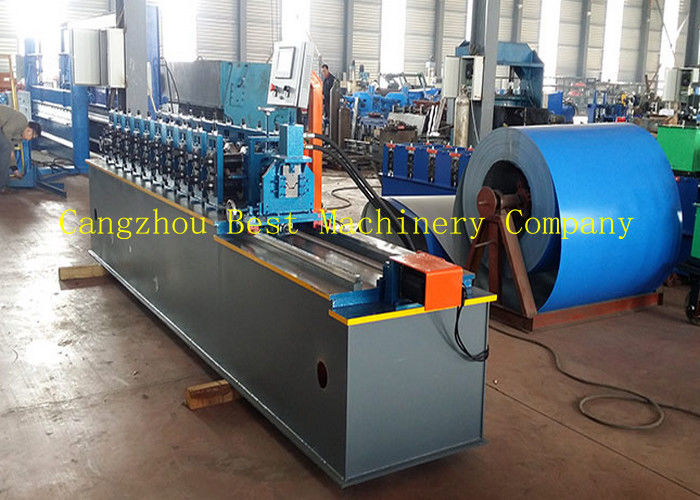

3. Machine photos:

High Speed Furring Channel Roll Forming Machine For Ceiling Drywall 1High Speed Furring Channel Roll Forming Machine For Ceiling Drywall 2High Speed Furring Channel Roll Forming Machine For Ceiling Drywall 3



4. Payment terms and after-sale service:

1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 60 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual to teach you to install and operate.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 100 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc
.



5. Please inquiry me, learn more details.
