Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System

Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System
Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System
Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System

Large Image :  Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System

Description
Product Name: Building Color Steel Water Gutter Roll Forming Machine With 50-60HZ PLC Control System Machine Speed: 8-12m/min
Machine Dimention: 5.5mx1mx1.4m Machine Power: 3kw+3kw
Control System: PLC Cutting Type: Hydraulic
Pressing Type: Hydraulic
High Light:

metal roll forming machine

,

profile roll forming machine

Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System

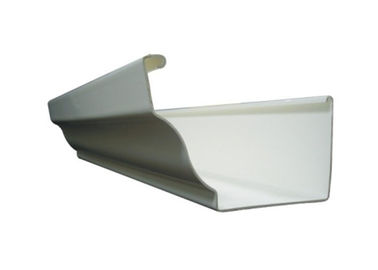

We can produce The Bending Machine Bending Machine Gutter channel for you, is one of our main machines, we are a professional manufacturer of various Bending Gutter Gutter Machines. It is widely used today in the building, especially the building of The villa. The Road Not only has the function of decoration, but also have the function of collecting Rainwater. There are many different types of gutters, attached several drawings of the Ditch for reference, please have a check.





Machine components



De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set











Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System 0

 Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System 1


Technical Parameter



1 Material type Color steel or galvanized steel
2 Material thickness 0.2-0.8mm
3 The panel size Can produce according to the profile
4 Forming Speed 8-12m/min
5 Material width Can produce according to ur requirement
6 The effective width Can produce according to ur requirement
7 Application Roof sheet
8 The dimension 6800*1200*1300mm
9 Forming station 10
10 Diameter of the roller 76mm
11 Bracket Welded with 36#I-steel
12 Material of shafts: 45#steel with rough finished and then refined finished
13 Main power 3kw
14 Hydraulic power 3kw
15 Cutting system Hydraulic cutting
16 Voltage 380V 50Hz 3Phase
17 Transmission Transmitted by the chain-bracket
18 Material of chain 45#steel with heat treatment of HRC45-50°
19 Material of rollers High quality 45# steel coated with hard chrome 0.05mm
20 Material of Rack Complete welded structure of A3 steel plate 18mm thickness



PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

(5) Language: English and Chinese

(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand



Working conditions
1. working size 15m x 2m x 4m
2. Power supply 6kw
3. Frequency 50-60HZ
4. Wires/cables 4-6mm²(length according to workshop)
5. Labor cost 2 workers
6. Tools Spanners and screwdriver
7. Lift device 3-5t forklift or crane

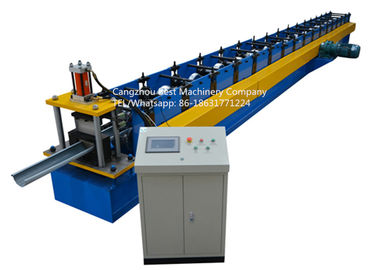

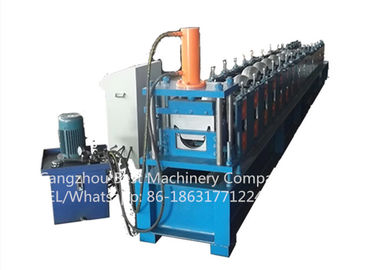

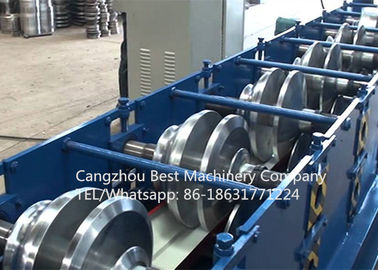

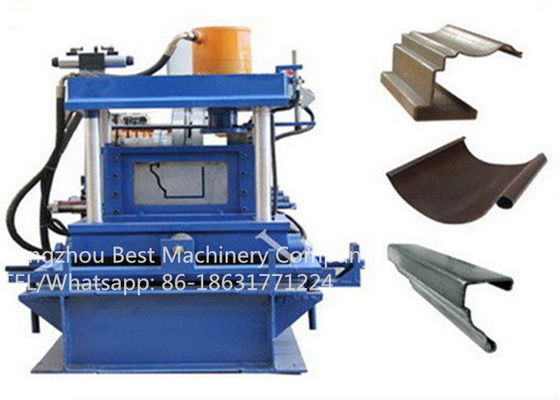

Photos



Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System 2

Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System 3



Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System 4



Building Color Steel Water Gutter Roll Forming Machine with 50-60HZ PLC Control System 5



Installion
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



RFQ



Step 1: Tell us your requirements

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production

Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping

Step 7: Handing Shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.
