Product Details:
|
| Product Name: | Automatic IBR/Glazed Tile/Corrugated Three Layer Roof Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | ||
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
Automatic IBR/Glazed Tile/Corrugated Three Layer Roof Roll Forming Machine
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 3 Sets |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Technical Parameter
| 1. Profile |
1 Feeding width: 1000mm/1200mm 2 Effective width:according to customer request 3 Material thickness: 0.3-0.8mm |
| 2. Process flow |
Decoiling--feeding---forming---cutting---production |
|
3. Manual Decoiler |
1 Material coil inner diameter: 450mm-550mm 2 Max coil width: 1200mm 3 Carrying capacity: 5T |
| 4. Forming Device |
1 Number of forming steps:15 /16/18steps 2 Shaft material: 45# steel with harden treatment, outer diameter 75mm 3 Roller material: 45# steel 4 Main motor power: 5.5kw 5 Forming speed: 8-12m/min(So year production is about 520000 pieces generally) 6 Voltage:380V/50Hz/3 phrase |
| 5. Cutting Device |
1 hydraulic cutter 2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62°C 3 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. |
| 6. Controlling Device |
1 screen: 5.7 inch Taida screen from Taiwan 2 PLC: Taida DVP14ES from Taiwan |
| 7. Hydraulic | 1 Advanced hydraulic system from Taiw |
| 8. Simple output frame | simple frame weld bu #8 U bar, 1 pcs of 3m |
| 9. Payment and terms |
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
|
| 10. Warranty | One year, and we will provide the technical support for the whole life. |
|
11. Packing |
Container packing of the line suitable for overseas shipping The subject can be loaded in one 40’ GP container. Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box. |
| 12. Assemble, train the machine | It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time |
|
13. Maintain |
It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $50/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain). |
Packing&Loading
- 1 Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
- 2 This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.
- 3 AlI the parts in the roll forming machine is free to maintain all the life,if in 18 months ourcompany bear the cost for exchanged the broken part like the new parts cost and expresscost,if more than 18 month,we also free to maintain the broken parts but for send the newparts,the buyer need bear the express cost.
- 4 When ship the roll forming machine,We will also send one set CD and specification(Chi-nese and English) to you with the machine,they can teach you how to operater themachines.

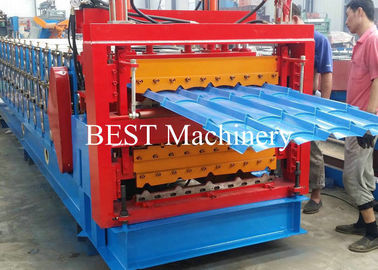

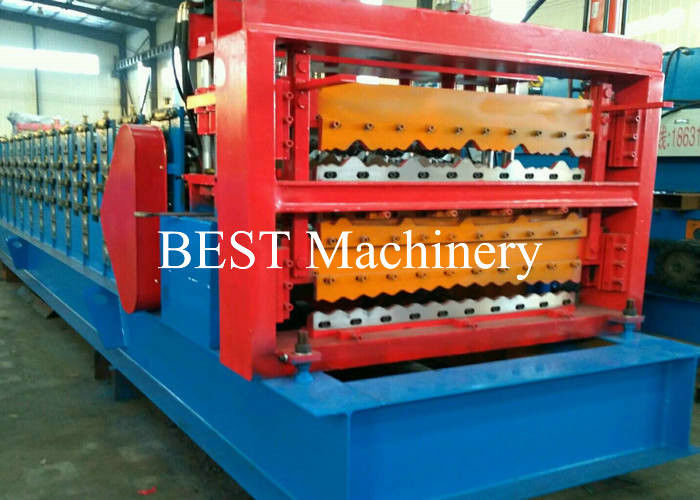

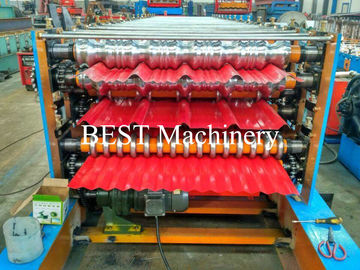

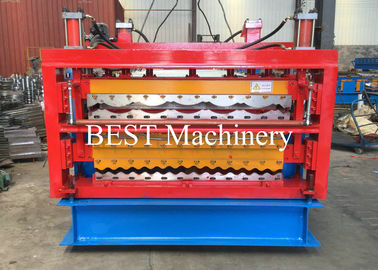

Machine Photo
We can produce difference kinds of roll forming machine according to customer request.
