Product Details:
|
| Name: | Roof Ridge Cap Cold Roll Forming Machine 350H Steel With PLC Control | Color: | As Your Require |
|---|---|---|---|
| Material: | PPGI/GI | Warranty: | 2 Year |
| Power: | 3kw | Shaft Material: | 45# Steel |
| High Light: | ridge cap machine,steel roof tile forming machine |
||

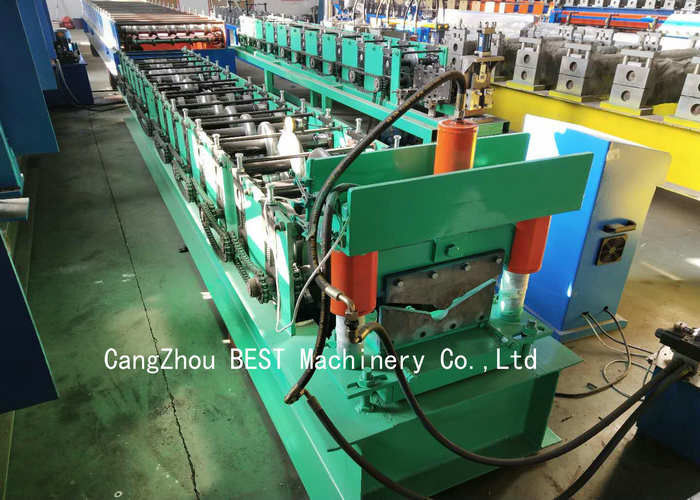

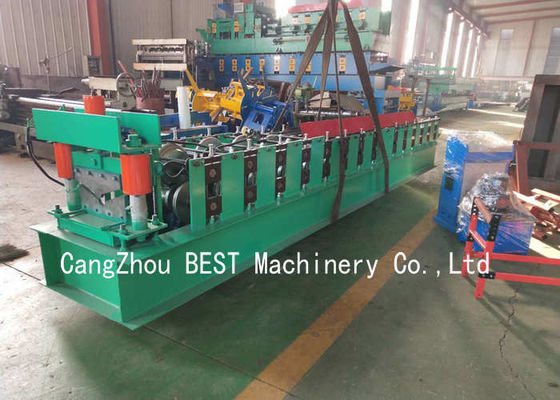

Roof Ridge Cap Cold Roll Forming Machine 350H Steel With PLC Control
Machine Component
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| Hydraulic Pump | 1set |
| PLC Control System | 1set |
| Output Table | 1set |
Decoiler
|
Inner Diameter |
450-550mm |
|
Out Diameter |
1200mm |
| Capacity | 3000kgs |
| Type | Hydraulic Or Manual |

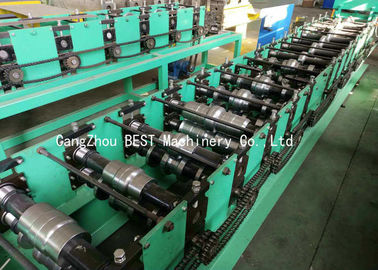

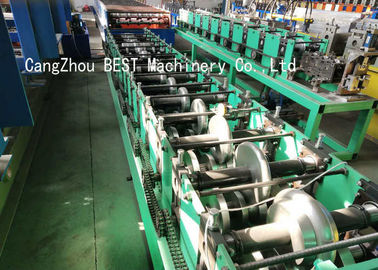

Roll Forming Machine
Rolled Material: PPGI and GI
Material Thickness: 0.4-0.5mm
Rollers: 12steps
Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
Frame panel thickness: 14mm
Bottom frame: 35# H-section steel
Motor Power: 3 kw
Rolling Speed: 8-10 m / min
Driven type: 1.0＂Chain
Diameter of shaft: 70mm
Material for shaft: High grade No.45 steel after treatment Hardness for Heat Treatment: HRC55 – 60℃
Cutting Device
| Type | Hydraulic |
|
Material for Cut-Off Modular |
Cr12 steel |
|
Hardness for Heat Treatment |
HRC55 – 60℃ |
|
Motor for Hydraulic Stand |
3kw |
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand: Deta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Hydraulic Pump
Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Work Flow
Decoiler-----feeding-----roll forming ----cut to length----output table
Our Service
Pre-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
After-Sales-Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Packing Detall
| 1 |
1*40 GP container ; main machine naked and fastened with iron wire in the container. |
| 2 | Rollers were painted with oil and packed with plastic film. |
| 3 |
Electrics devices be packed with wooden box.for Standard export packing. |
| 4 |
All Components Fixed by steel wire with Container. |
