760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Chain Driven Type\

760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Chain Driven Type\
760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Chain Driven Type\ 760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Chain Driven Type\ 760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Chain Driven Type\ 760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Chain Driven Type\

Large Image :  760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Chain Driven Type\

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-760
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD6000-USD25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Chain Driven Type\

Description
Name: 760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Material: GI,PPGI,AL
Driven Type: Chain Condition: New
Usage: Roofing Color: As Your Request
Voltage: 380v Place Of Origin: Hebei, China
Warranty: 2 Years Cutting Type: Hydraulic
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine



Main parameters:

No. main parameter of JCH galvanized steel joint hidden roll forming machine
1 Suitable to process Color steel plate, galvanized sheet, aluminum coils and etc.
2 Width of the feeding material 820/760 mm
3 Roller station 16 rows or custom
4 Thickness of feeding material 0.16-0.3mm
5 Power 5.5kw
7 Productivity 6-12m/min
8 Diameter of the roller Φ70mm
9 Weight About 4 T
10 Size 8200*950*1000mm
11 Voltage 380V 50Hz 3phases
12 Rolling material 45# steel
13 Material of the cutting plate Cr12
14 Wall thickness of main forming machine 20mm steel plate
15 Main forming machine body 400 mm H steel
16 Control system PLC control
Can be customized according to customer requirements or drawings



Product details:

uncoiler
Loading capacity 5T
Inner diameter 470-530mm
Steel coil width

914, 1000, 1220, 1250 mm.

According to your actual drawing.

Working speed 0-15m/min, adjustable



feeding table
It is used to control the width and position of the steel sheet.

The sheet is guided into the machine with correct position,

to make sure the panel is neat and paralle



main frame
Material 350 H steel
Feature

more table, no shaking



forming rollers
Material High grade 45# steel.
Roller stations

11-16 stations.

According to your actual drawing



cutting system
Material of blade Cr12MOV, much better than normal Cr12 material
Hydraulic power 3KW



control cabinet
Suitable power

380V, 50Hz, 3phase

or according to your need.

Feature

The whole process is automatically controlled by the computer.

In this way, you can ensure the accuracy and easy work.



Our service:

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.



How do order?

Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.

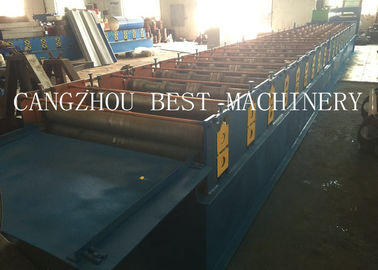

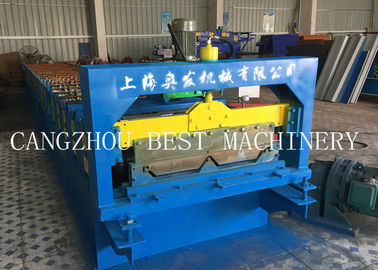

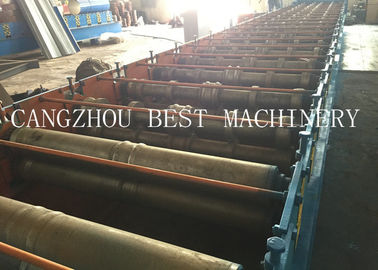

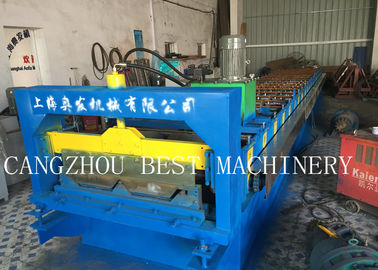

Machine photos:

760 / 820 Clip Self Lock Roofing Wall Panel Sheet Roll Forming Machine Chain Driven Type\ 0
