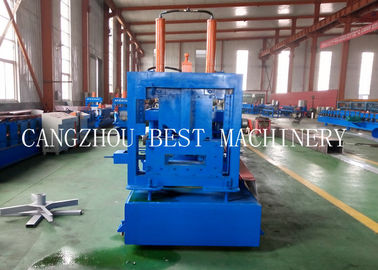

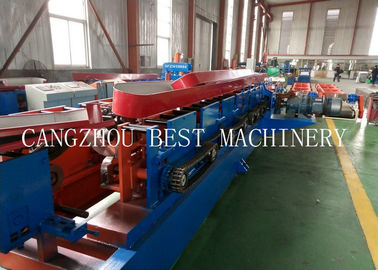

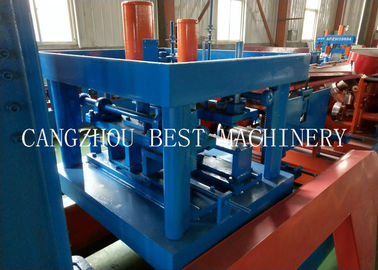

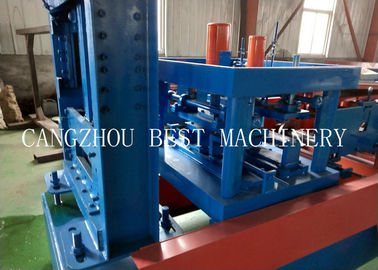

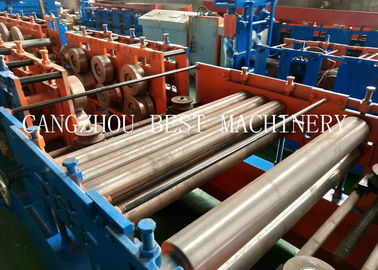

Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power

Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power
Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power

Large Image :  Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD9500-USD25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power

Description
Name: Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine Condition: New
Color: As Your Request Customized: Yes
Material: Galvanized Power: 18.5kw
Voltage: 380v Warranty: 2 Years
Cutting Type: Hydraulic Cutting Blade: Cr12 Steel
High Light:

c channel roll forming machine

,

steel frame roll forming machine

Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine



Machine details:

Roll Forming Machine Specs
Guiding Rollers Two units 45# forging steel with treatment
Leveling Rollers Up 2 down 3, 45# forging steel with treatment
Roller station 15 forming units
Under Frame 350H-beam, Welded structure
Sidewall Thickness 18mm 45# Steel Plate
Sidewall Connect Bar 20mm
Shaft diameter(Solid) 80mm
Shaft material(Hard) High grade 45# steel,heated and quenched cylindrical grinding,
Roller material(Hard) High grade GCr15 bearing steel,heated and quenched
Roller Surface hard chrome coated 0.05mm
Bearing Type Standard 6210
Screw&Bolt Self-made
Transmission Chain 1.5 inch(Jindun,Hangzhou)
Motor Power 15 KW
Forming Speed 12-15m/min
Hydraulic Punching Device
Hole size 15mm(according to profiel drawing)
Hydraulic Cutting Device Specs
Main Structure Welded Structural Steel
Steel Plate 18mm A3 Steel
Cutting type Hydraulic Operation,Stop to post and post to cut
Cylinder Quantity One unit
Pump power 5.5KW,25 Mpa Hydraulic Pressure
Cutting die Cr12Mov, Quenched processed
Automatic Computer Control System
Length tolerance 10m+/-1.5mm
PLC System Delta PLC Program
Length Controller Omron,Japan
Operation Touch-Win Screen,Jiangsu
Inverter Delta,Taiwan
Voltage Standard 220V/3Phases/60Hz(according to your request)

3 Ton Manual Uncoiler

Link-connect expanding system

Coil Inner-diameter 480-510mm
Coil Outer-diameter Max. 1000mm
Load Capacity Max. 3 Tons
Coil Width Max. 650mm



Machine photos:

Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power 0Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power 1



Optional:

Automatic Change Size CU 800-300 Steel Frame Purlin Roll Forming Machine 18.5kw power 2

Sales terms:

  • Payment Method

30% as deposit ,balance payment after inspection while before delivery.

  • Production Period

30 days after the 30% deposit.

  • Packing Method

Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.

  • After-sell Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

  • Installation

If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.

Position the machine in the buyer’s factory.

Prepare necessary electric wiring.

Prepare material of trial running.

Provide labors for assistance and installation during installation.
