Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet

China Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet supplier
Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet supplier Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet supplier Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet supplier Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet supplier

Large Image :  Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet

Product Details:

Place of Origin: China
Brand Name: CHBEST
Certification: CE, BV, SGS
Model Number: YX-230

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD33000-USD85000/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month
Contact Now
Detailed Product Description
Name: Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet Material: Galvanized
Condition: New Warranty: 2 Years
Customized: Yes Place Of Origin: Hebei, China
Voltage: Requirement Roller Material: GCr15
Usage: Building Weight: 10tons

Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet



1.Machine Components

S.N Equipment name Quantity
1 3T hydraulic un-coiler 1 set
2 Leveling device 600mm 1 set
3 Servo feeding device 600mm 1 unit
4 Press machineJH21-125 1 unit
5 Main roll forming machine 20 stations 1 set
6 Cutting holder 1 set
7 Hydraulic station 1 set
8 Control system ( including control box) 1 set
9 Conveyor Out table 1 unit
10 Spare parts 1 package
11 Drive system 1 set
12 Cutting dies 2 sets
13 Punching die set 2 sets



2.Technical Parameter

1). Decoiler

* Decoiler Type: Hydraulic Decoiler

* Weight Capacity Of Decoiler: 3 Ton

* Hydraulic expanding

* Inner Diameter. Φ460-520mm

* Outer Diameter. Φ1400mm

2). Roll Former

* Axis Diameter: 90mm

* Forming Roller stand: 14 Groups or according to customer profile

* Main Axis material: First grade 45# steel, heated and quenched

* Roller material: GCr15 Steel, Quenched and heated process

* Drive Type: 1.5” Chain of transmission

* Chain material: 45#steel, HRC45-50

* Machine Frame stand: coloum stand

* Main Power: 11 KW

3) Cutting Device

* Cutting type: Hydraulic cutting

* Hydraulic pump station power:7.5 KW

* Hydraulic Blade and cutter material: Cr12Mov, quenching process 58-62

* Cutting length tolerance: 10M+/- 2.0 mm

4). Electrical System

* Voltage: 380V, 3 Phase 50Hz

* PLC Electrical control system: PANASONIC

* Length Controller: Encoder Frequency Control System

* Operation: Touch Screen

* Transducer: PANASONIC

5) Runout Table:

* Non-power type



3.Drawing:

Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet

Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet

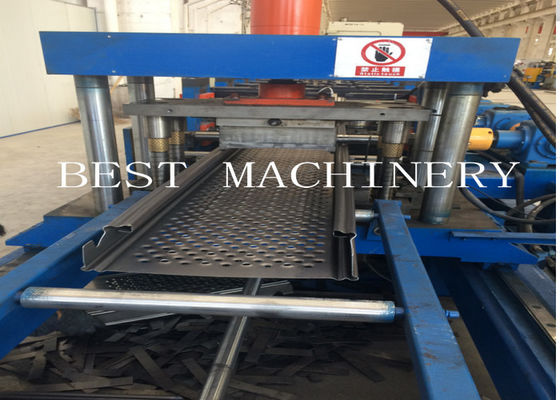

4. Machine photos for reference:

Automatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron SheetAutomatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron SheetAutomatic Scaffold Walk Board Rolling Forming Machine For Galvaized Iron Sheet



5.Payment Term and condition

* Payment Term: 30 T/T in advance, 70% T/T before delivery

* Delivery Time: Within 30 Days after receipt of the down payment

* Warranty: 18 month and life-long maintainance

*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 100 USD/day, and provide accommodation, food and the round-trip ticket fee.

* Installation Days: about 5 days

* Transporting: 1x40ft container



6.FAQ:

1:How to play order:

Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK



2:How to visit our company:

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.



3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.



4.What's the after- sale service:

we sent technician to your country to fix the machine.The buyer should bear all the cost including:

visa, round trip ticket and suitable accommodation, also buyer should pay the salary EVERY DAY.
