Product Details:
|
| Product Name: | Guide Pillar YX-828 Glazed Roof Tile Roll Forming Machine PLC Control | Warranty: | 2 Years |
|---|---|---|---|
| Machine Speed: | 4-6m/min | Material Thickness: | 0.3-0.8mm |
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| Cutting Type: | Hydraulic | Condition: | New |
| Shaft: | 70mm | Key Selling Word: | Easy To Operate |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||

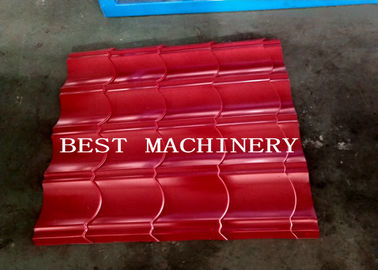

Guide Pillar YX-828 Glazed Roof Tile Roll Forming Machine PLC Control
Working flow
Decoiler----feeding----roll forming----pressing----cut to length----output table
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Pressing Device | 1 Set |
| 4. | Hydraulic Cutting Device | 1 Set |
| 5. | PLC Control Box | 1 Set |
| 6. | Hydraulic Pump | 1 Set |
| 7. | Stacker | 1 Set |
Decoiler
(1)Inner Diameter: Φ508 – Φ610 mm
(2)Out Diameter: 1500 mm
(3)Max. Loading Capacity: 5000 kg

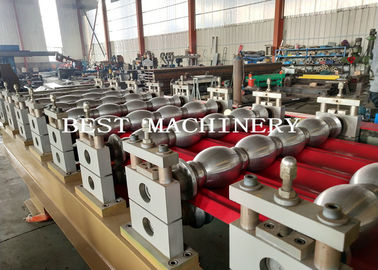

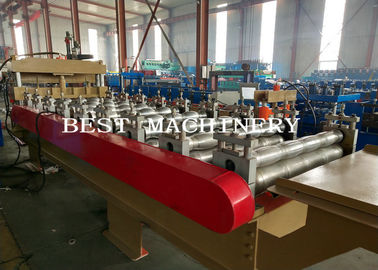

Roll forming
(1) Material Thickness: 0.4-0.8mm
(2) Rollers: 9steps
(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
(4) Material for shaft: high grade No.45 steel after treatment
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5 kw
(9) Driven type: 1.0＂Chain

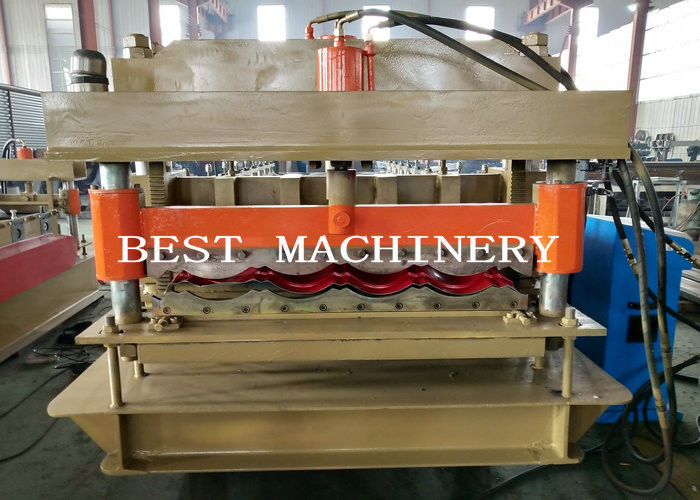

Pressing and cutting device
| Type |
bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
|
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
Terms:
| Delivery | 30 days |
| Package | export standard package for container |
| Payment | TT (30% by TT in advance,70% by TT after you inspect machine we need) |
| Delivery date | within 30 working days after receiving deposit |
| Products Warranty | 8months,and we will provide the technical support for whole life of the equipment. |
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone 0086 18045013499
