Product Details:
|
| Name: | 1 Year Warranty 2mm Galvanized Floor Decking Sheet Roll Forming Machine | Condition: | New |
|---|---|---|---|
| Voltage: | 380v | Production Capacity: | 6-8m/min |
| Warranty: | 2years | Place Of Orgin:: | Hebei,China |
| Power: | 15kw | Weight: | 11 |
| High Light: | panel roll forming machine,cold roll forming machine |
||

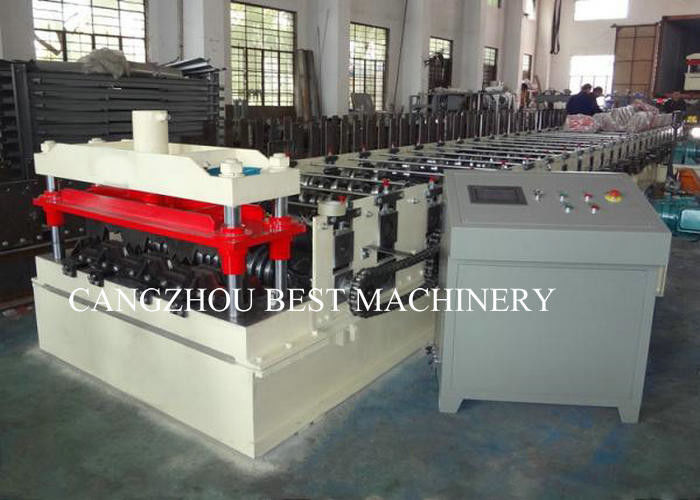

1 Year Warranty 2mm Galvanized Floor Decking Sheet Roll Forming Machine
1. Machine components list:
| Name | NO. | Unit |
| 1.De-coiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Cutting device | 1 | set |
| 4.PLC control box | 1 | set |
| 5.Hydraulic pump station | 1 | set |
| 6.Production support table | 1 | set |
2. Main technical parameter:
DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

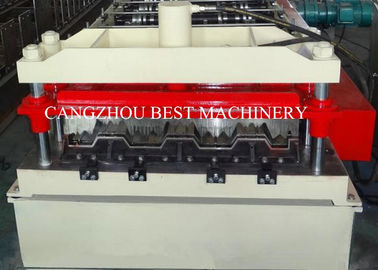

ROLL FORMING MACHINE
(1) Material Thickness: 0.8-1.6mm
(2) Rollers: 28groups
(3) Material for Rollers: 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade No.45 steel after treatment
(5) Diameter of shaft: 90mm
CUT-OFF DEVICE
(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC58-62°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Power:5.5kw
ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Length Error: ±2mm
(4) Language: English and Chinese
(5) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
PRODUCTION SUPPORT TABLE
(1) No power type
(2) Length: 2m
3. Our Service:
- Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week
- Reply within 24 hours
- Provide relevant product information
- Answer questions if request
- Give technical suggestion
² Provide After-sales service 24hr × 7days per week
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance.
4. WHY CHOOSE BEST COMPANY
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q: What can you do if the machine broken?
A: our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
5. Loading and Packing:
1) 20''/40'' container
2) The machine we will wrap in plastic and attach marks
3) Other machine elements and tools we have a wood box
4) Before loading, we will fix and check the machine
5) Before shipping, we will invite our customer to check the machine again
