Product Details:
|
| Product Name: | YX-686 762 Double Layer Deck Profile Roof Roll Forming Machine Popular In Africa | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Hydraulic Power: | 3kw |
| Machine Power: | 3kw | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
Machine components
| Name | NO. | Unit |
| 1.De-coiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Cutting device | 1 | set |
| 4.PLC control box | 1 | set |
| 5.Hydraulic pump station | 1 | set |
| 6.Production support table | 1 | set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo |  |
|
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |
roll forming
| Item | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.25-0.8mm | ||||||||
| Machine frame |
360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision |
||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 19/ 20stations | ||||||||
| Machine rollers |
high grade No.45 forged steel,plated hard chroming with thickness 0.05mm |
||||||||
| Machine Shaft | φ700mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||
| Driving system | 1 inch chain or gear box(option) | ||||||||
| Machine power | 5.5kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type |
After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Cutting
| Type |
bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
|
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
Our service:
1 warranty:One year, and we will provide the technical support for the whole life.
2 Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3 Need one or two technician
4. Training time: one week (contains the time of installation and adjustment)
FAQ
Q1: How can I contact salesman?
A1: Please call 008618045013499 or send email to export at beatlestech.com.
Q2: Can I have Beatles products catalog and price list?
A2: Please contact us and send us email or inquiry for price.
Q3: How long does it take to get the product if I place an order?
A3: 30 Workdays After We Receive The 30% Advance Payment.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply with our quotation. If our price suits you, we will prepare proforma invoice with our banking detail.
Q5: Minimum order quantity?
A5: MOQ is 1 set.
Q6: What kind of terms of payment?
A6: T/T, L/C, D/A, D/P, Western Union are available.
Q7: What grams of products can you offer?
A7: According to your requirements.
Q8: Can you do customization & reproduction if I provide a photo?
A8: Yes.

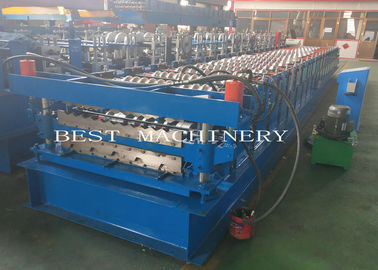

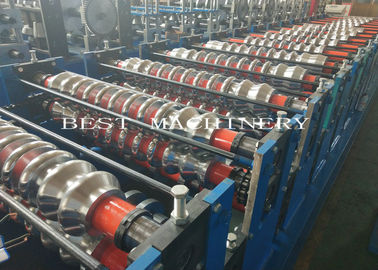

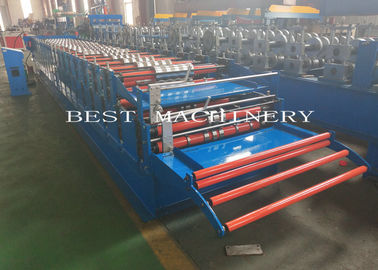

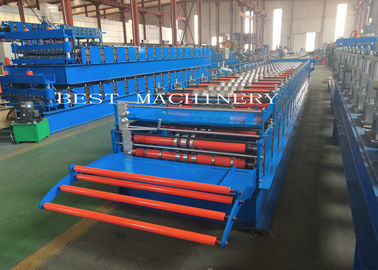

Machine photos:
