Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type

China Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type supplier
Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type supplier Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type supplier Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type supplier Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type supplier Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type supplier

Large Image :  Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type

Product Details:

Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-USD36500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Name: Big Cold C Profile Purlin Roll Forming Making Machine Chain Driven Color: As Your Request
Customized: Yes Material: Galvanized
Warranty: 2 Years Cutting Type: Hydraulic
Condition: New Use: Roof
Voltage: 380v Production Capacity: 15m/min



Big Cold C Profile Purlin Roll Forming Making Machine Chain Driven



Features of C Purlin Roll Forming Machine
The C shaped purlin formed by C purlin roll forming machine has excellent anti-bending property and are easy to install. Machine adopt cast iron structure, which will increase the strength of the machine.

The processing of Punching & Cutting has different type for choosing: Post-Punching & Post-Cutting, Pre-Punching & Post Cutting, Pre-Punching & Pre-Cutting.

Applications of C Purlin Roll Forming Machine
The finished products are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Process Flow of C Purlin Roll Forming Machine

Uncoiler --- Feeding --- Straightening ---  Roll Forming ---Punching---Cutting--- Output table

Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type

Technical Detail

Weight capacity of decoiler 4T
Appearance Size(L*W*H) 6500*800*1600
Raw material /feeding sheet material colored steel & galvanized steel
Roller material cr15 high grade steel
Shaft material cr15 high grade steel
Kind of drive chain drive
Cutting system automatic hydyaulic cutting
Cutting blade material Cr 12 high grade steel
Frame material 300 H-high grade steel
Control system totally automatic PLC control system
Main power 18.5 kw
Roller stations 13-18 rows
Speed of production 8-12m/min
Thickness of colored steel 1.0-3mm



Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.

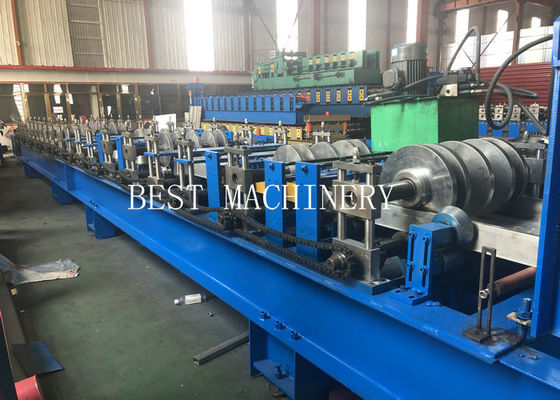

Machine pictures:

Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting TypeBig Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting TypeBig Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type



Packing and Loading:

1. One 40ft container for loading one set machine with manual decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3. Spare parts and some small parts packed in plastic tooling box;

4. All Components Fixed by steel wire with Container.

Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting TypeBig Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type

Big Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting TypeBig Cold C Profile Purlin Roll Forming Machine Chain Driven Hydraulic Cutting Type



After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)



Our advantage:

Over 20 years' rich experience!

a.Specialized in roll forming machine since 1998.

b.Keeping improving the quality.

2. Low price

Save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. PLC

Ensuring high accuracy and easy to operate!

Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

4. OEM / ODM

Customers’design, color & logo are also accepted!

Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

5. One-Years warranty, whole life service

Keep troubles far away from you!

Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
