Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line

Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line
Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line

Large Image :  Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: BE-01
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line

Description
Name: Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line Roller Material: Hydraulic Cutting
The Shaft: 70mm Cutting Blade Material: Cr12
Screen: Color Touch Screen Bottom Frame: 350H Steel
Control System: PLC Condition: New
Color: Customized Cutting: Hydraulic
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line

1. Main Parameter:

Item Parameters
  According to buyer's requirements
Raw material Type Color plate, aluminium plate, galvanized plate
Thickness(mm) 0.3-0.8
Width of the feeding material According to buyer's final confirmed profile drawing
Yield strength(Mpa) 230-550
Forming speed(m/min) 12-15 (not contain cutting)
Roller material 45 # sheet with chrome coated
Roller driven type Chain transmission
Control System PLC (Panasonic) as list in the note
Operation type Touch screen + button
Hydraulic system pressure( MPa ) 10-12
Hydraulic motor power ( KW ) 3
Main motor power(KW) 3
Roller Stations 22 stations or according to profile
Shaft Material and DIA 70mm, material is 45 # forge steel
Roller Material 45# forge steel, coated with chrome
Electric Source 380V, 50HZ,3 phase
According to customer’s require
Material Of Cutting Cr12Mov quenching 58-62℃
Dimension(L*W*H) Forming Section about 11.0m*1.7m*1.6m
Weight of machine About 5~8 tons



Machine List

Hydraulic decoiler ( 5 Tons ) 1 unit
Main Roll Forming Machine 1 unit
Cutting Device 1 unit
Electrical System with PLC Control 1 unit
Hydraulic station 2 unit
Auto stacker 1 unit



2. Machine details:

DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs



ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 70mm



CUT-OFF DEVICE

(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC58 – 62°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw



PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

(5) Language: English and Chinese

(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand



PRODUCTION SUPPORT TABLE

(1) No power type
(2) Length: 2m



3. Packing:

- 1. Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

- 2. This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

- 3. All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.



4. Installation and Training:

1 If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2 Without visiting, we will send you user manual and video to teach you to install and operate.
3

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



5. Our Warranty:

1. The warranty will be maintenance, maintain in the guarantee period of 18months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts to charge freely, which is in the conditions of correct operation.

2. If the equipment are out of work in the guarantee period, the buyer need our repairman to go to buyer’s factory, the buyer should be responsible for the tickets(including round-trip ticket), the fee of transportation to the buyer’s factory andaccommodation. Required to change spare parts, the buyer should afford the freight fee and we don’t ask extra fee.



6. Our main products include:

Villa Keel Roll Forming Machine Stud and Track Keel Roll Forming Machine
Omega Profiles Keel Roll Forming Machine Profiles Bending Roll Forming Machine
Ceiling Keel Roll Forming Machine Double Layer Roofing Tile Roll Forming Machine
Metal Roofing Roll Forming Machine Floor Deck Roll Forming Machine
C-Purlin Forming Machine Light Steel Forming Machine
Ridge Tile Forming Machine Bending Machine
Our machines are customized, we can produce according to your requirement  Welcome to inquiry



7. Photos for Reference:

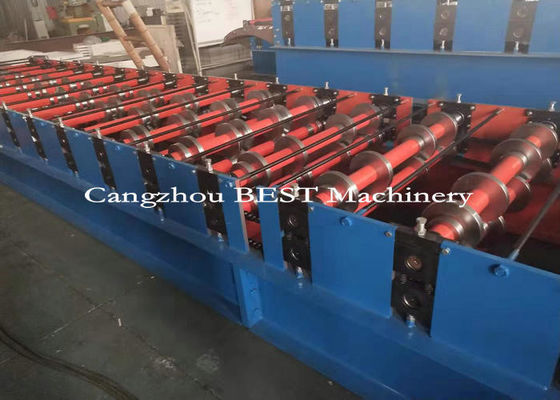

Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line 0

Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line 1

Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line 2



We can produce according to your requirements.
