Product Details:
|
| Name: | Ridge Cap Cold Making Roll Forming Machine With PLC Control 380V50HZ | Thickness: | 0.4-0.5mm |
|---|---|---|---|
| Color: | As Your Require | Warranty: | 2 Year |
| Voltage: | 380V/50HZ/3PHASE | Shaft Material: | 45# Steel |
| High Light: | ridge cap machine,steel roof tile forming machine |
||

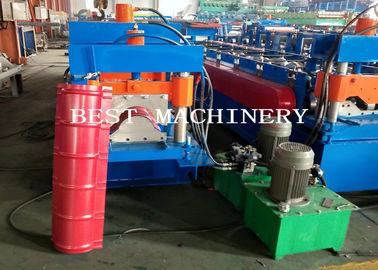

Ridge Cap Cold Making Roll Forming Machine With PLC Control 380V50HZ
Work Flow
Decoiler-----feeding-----roll forming ----cut to length----output table
Machine Component
| Decoiler | 1set |
| Roll Forming | 1set |
| Cutting Device | 1set |
| PLC Control System | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
Decoiler
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1200 mm
Max. Loading Capacity: 3000 kg
Type:Manual Or Hydraulic

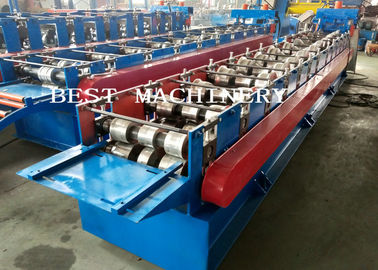

Roll Forming Machine
Rolled Material: PPGI and GI
Rollers: 12steps
Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
Material for shaft: High grade No.45 steel after treatment
Hardness for Heat Treatment: HRC55 – 60℃
Diameter of shaft: 70mm
Frame panel thickness: 14mm
Bottom frame: 35# H-section steel
Motor Power: 3 kw
Rolling Speed: 8-10 m / min
Driven type: 1.0＂Chain

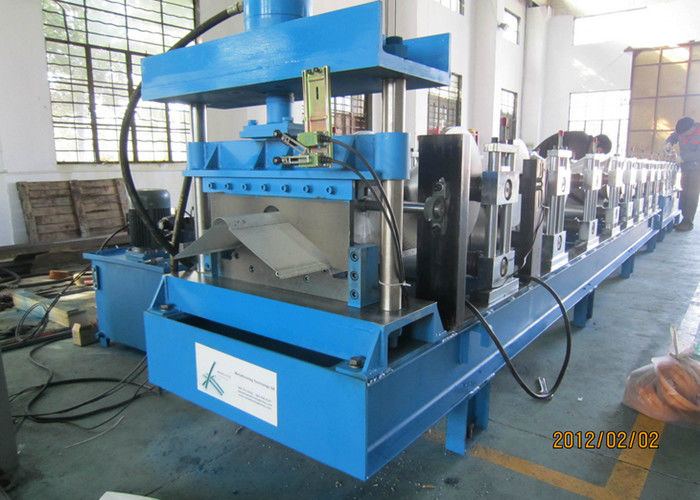

Cutting Device
Material for Cut-Off Modular:Cr12 steel
Hardness for Heat Treatment:HRC55 – 60℃
Motor for Hydraulic Stand:3 kw
Control System
| Type |
PLC Frequency Control System with touch screen |
| PLC Brand | Delta |
|
Encoder Brand |
Omron |
| Length Error |
±2mm |
|
Language |
English and Chinese |
|
Voltage |
380V/50HZ/3PHASE |
Hydraulic Pump
|
Motor power |
3kw |
|
Oil type |
46# hydraulic oil |
| Pump Brand |
China brand |
Output Table
No power type
Length: 2m
Packing Detall
| 1. |
1*20 GP container ; main machine naked and fastened with iron wire in the container. |
| 2 |
rollers were painted with oil and packed with plastic film. |
| 3 | electrics devices be packed with wooden box.for Standard export packing. |
| 4 |
All Components Fixed by steel wire with Container. |
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Other Machine
Roof sheet machine, c z purlin machine,roller shutter door machine, double layer machine, roof tile machine, ceiling drywall machine, cable tray machine,ridge cap machine, water tube machine, water gutter machine, decking sheet machine, sandwich panel machine and so on.
