Product Details:
|
| Place Of Origin: | Hebei, China (Mainland) | Model Number: | CZ80-300 |
|---|---|---|---|
| Name: | Cold Metal H Beam Purlin Roll Forming Machine With Long Service Life | Warranty: | 2 Years |
| Customized: | Yes | Use: | Roofing |
| Color: | As Your Request | Cutting Type: | Hydraulic |
| Power(W): | 22kw | Production Capacity: | 8-12m/min |
| High Light: | c channel roll forming machine,steel frame roll forming machine |
||

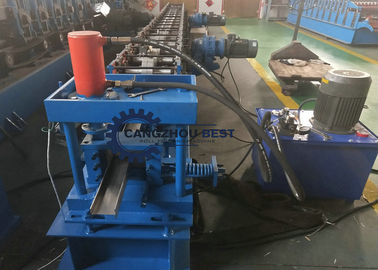

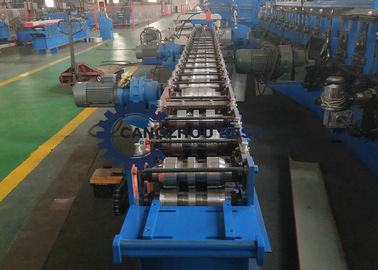

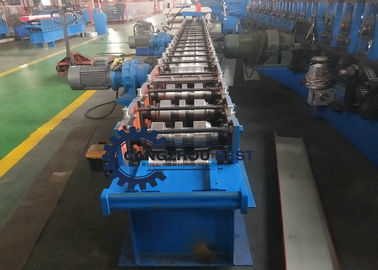

Cold Metal H Beam Purlin Roll Forming Machine With Long Service Life
1. Working Flow:
Uncoiling the coil → Leveling → Roll Forming → Automatic Cutting → Products Receiving
2. Main Specification of Roll Forming Machine
| No. | Item | Description |
| 1 | Type | Size automatic changing |
| 2 | Processing material | GI/carbon steel |
| 3 | Processing thickness | 1.5-3.0MM |
| 4 | Products’ sizes | Web width:80mm~300mm |
| Height:40mm~80mm | ||
| Lip:10mm~20mm | ||
| 5 | Hydraulic motor power | 7.5kw |
| 6 | Quantity of roller stations | 18 |
| 7 | Production speed | 0-15m/min |
| 8 | Diameter of shafts | Φ80mm |
| 9 | Material of rollers | Good qualified GCr15 Steel,rough turning → NC rough turning → heat treatment (HRC58-60) → CNC refined turning → hard chrome plating |
| 10 | Material of shafts | 45# steel, rough turning → NC rough turning → quenched-tempered heat treatment → accurate grinding |
| 11 | Material of cutting blades | Cr12 mould steel with quenched treatment |
| 12 | Size of machine | Approximate 7500mm(L)×1100mm(W)×1600mm(H) |
| 13 | Theoretical weight | Approximate 5000KGS |
| 14 | Driven method | Chain |
| 15 | Brand of PLC | Delta |
| 16 | Brand of encoder | Omron |

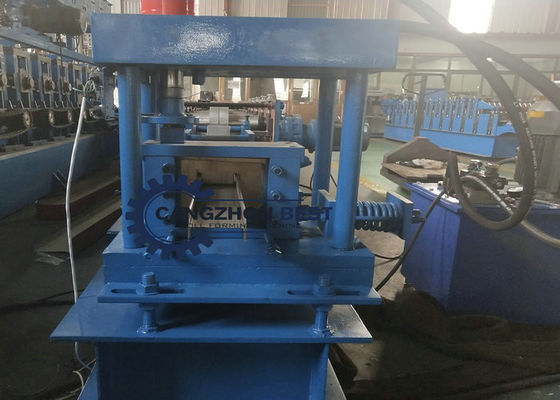

| 17 | Cut mode | Hydraulic profile cutting |
| 18 | Power supply | 380V 50HZ 3Phases or at buyer’s requirements |
3. Techical description:
NOTE: All technical parameters can be changed according to user s need, and only as a reference.
2. Components specification
(1) Manual Uncoiler
Max.Capacity:5T
(2) Pre- Cutting Device& Pre-Punching Device
It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.
Cutting length tolerance:±2mm
Material:GCr12 with quenched treatment 60-62°C
(3) Hydraulic System
Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.
Power: 7.5 KW
(4) Control System
It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.
Computed mode: automatic or manual
(5) Encoder
The counter gauges length, and modulates pulses.
(6) Simple Stack
It is used for loading the formed plate.
4. Working space and workman for the equipment:
1. Ground-level land
2. ≥5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter
5. Installation and Training:
1. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and video to teach you to install and operate.
Our Service:
1. Customer's Design,Size,Color,Logo are accepted.
2. With 20 years professional manufacture experience.
3. Prompt Delivery&Competitive Price.
4. Main Makets: Middle East, Europe, North American, Africa, Southeast Asia.
After-sales Service:
1. We provide the technical support for whole life of our machines.
2. If buyer need the technican to go aboard ,we will arrange the technican.but the buyers should pay for all the cost including Visa,round trip ticket etc.
About us:
We are whole heartedly committed to quality and customer service, primarily since we want to be ranked as the "best" in our business. Quality is not just another goal; it is our basic strategy for survival and future growth.
1. Are you manufacturer?
Yes, we are manufacturer and trading company.
2. What information you need before quote me?
We need profile drawing of the panel you want to produce, material information and your special requirements.
3. What payment terms you accept?
Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4. Can you make machine according to my design?
Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
5. What is the warranty for our machine?
We have one year guarantee, and provide whole life's technical support.
6. Is there any spare part send for free?
Yes, please contact us we can talk it.
Please inquiry me, get more details!!!
