Product Details:
|
| Name: | 686 762 Double Layer Roof Sheet Roll Forming Machine 350H Steel | Color: | As Your Require |
|---|---|---|---|
| Material: | PPGI GI | Shaft: | 70mm |
| Voltage: | 380V/50HZ/3PHASE | Warranty: | 2 Year |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

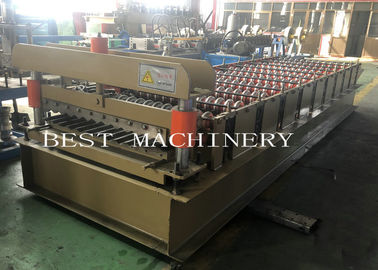

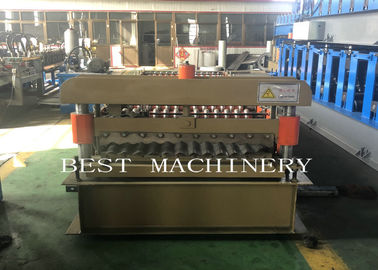

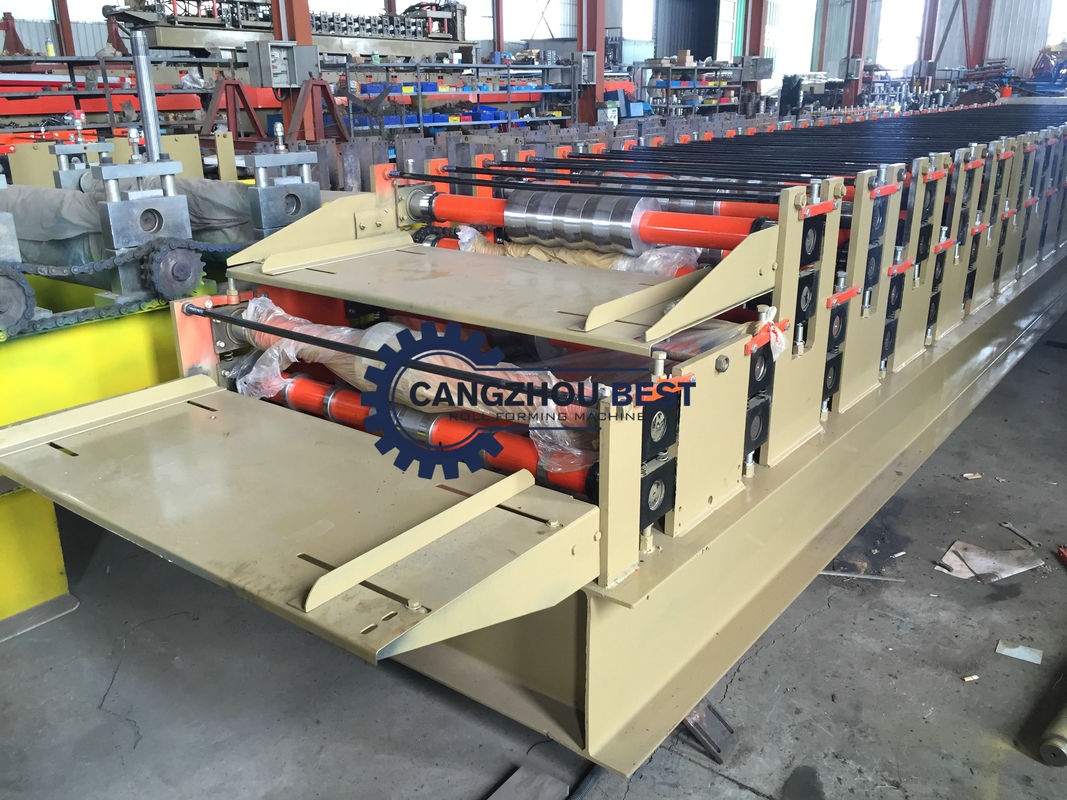

Popular Double Layer Roof Sheet Roll Forming Machine 350H Steel
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Machine Component
| Decoiler | 2set |
| Roll Forming | 1set |
| Cutting Device | 1set |
| Hydraulic Pump | 1set |
| PLC Control Box | 1set |
| Output Table | 1set |
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Decoiler
|
Max Width |
1500mm |
|
Inner Diameter |
450-550mm |
| Out Diameter | 1500mm |
| Capacity | 5000kg |
| Type | Manual Or Hydraulic |

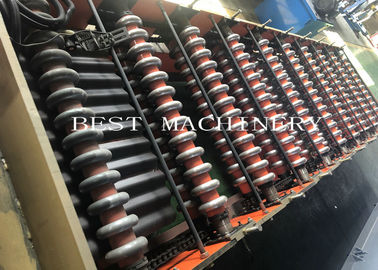

Roll Forming Machine
Material Thickness: 0.3-0.8mm PPGI and GI
Roller Stations:up16groups down20groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 5.5kw
Diameter of shaft: 70mm
Shaft Material: 45# steel
Driven type: 1.0＂Chain
Cutting Device
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW
PLC Control Box
| Type |
PLC Frequency Control System with touch screen |
|
PLC Brand |
Delta |
|
Encoder Brand |
Omron |
|
Length Error |
±2mm |
|
Language |
English and Chinese |
Hydraulic Pump
Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.
3. electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
Our Service
| Pre-Sales-Service |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. |
| After-Sales-Service |
Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas. If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |
