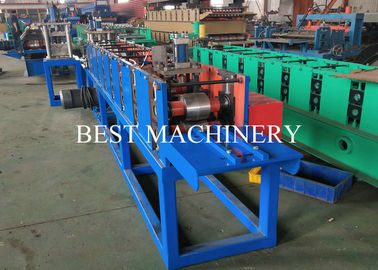

4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making

4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making
4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making 4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making 4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making 4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making

Large Image :  4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY80-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making

Description
Product Name: C And Z Purlin Steel Channel Quick Change Automatic Roll Forming Machine Machine Speed: 4-6m/min
Machine Dimention: 7.5mx1.8mx1.4m Driven System: Chain Or Gear Box
Control System: PLC Life Time: More Than 10 Years
High Light:

c channel roll forming machine

,

steel frame roll forming machine

High quality Roll Forming Machine C And Z Purlin Steel Channel Quick Change



Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table


Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se



Decoiler



Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity 5000kgs 5000kgs-8000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm

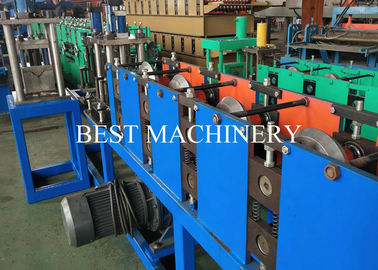

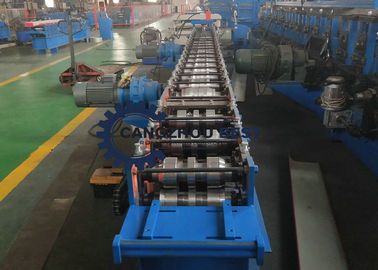

roll forming machine



(1) Material Thickness: 1-3 mm
(2) Rollers: 12Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

(4) Material for shaft: #45 steel after treatment

(5) Diameter of shaft: 80mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11kw
(9) Rolling Speed: 8-10 m / min

(10) Driven type: 1.5"Chain


Punching device


Item Parameter detail
Frame processing the whole levelling surface is made by drilling machine
Mould material Cr12mov
Mould processing wire eletrode-cutting for the mould shape, it will save pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa


PLC



Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan



4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making 0



4-6m / Min C And Z Purlin Roll Forming Machine Steel Channel Quick Change Making 1
