Product Details:
|
| Name: | Zinc Galvanizing Hydraulic Cutting Double Layer 840 Roofing Sheet Roll Forming Machine | Color: | As Your Require |
|---|---|---|---|
| Material: | PPGI/GI | Thickness: | 0.3-0.8mm |
| Voltage: | 380V/50HZ/3PHASE | Warranty: | 2 Year |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

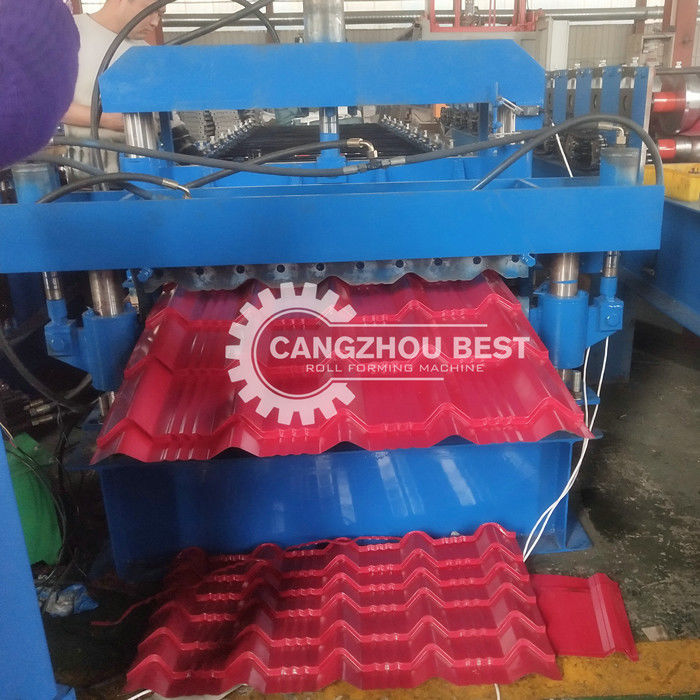

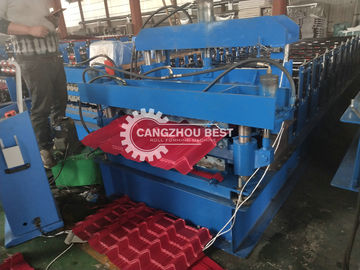

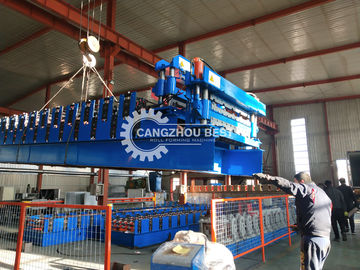

Zinc Galvanizing Hydraulic Cutting Double Layer 840 Roofing Sheet Roll Forming Machine
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Machine Component
| Decoiler | 2set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| Control System | 1set |
| Hydraulic Pump |
1set |
| Output Table | 1set |
Decoiler
|
Max. Width |
1250mm |
|
Inner Diameter |
450-550mm |
|
Out Diameter |
1500mm |
| Capacity |
5000kgs |
| Type | Hydraulic Or Manual |

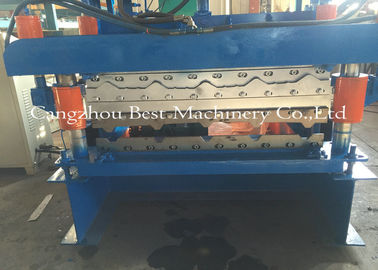

Roll Forming Machine
Material Thickness: 0.3-0.8 mm PPGI and GI
NO.of roller Stations:up 12groups down 12groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Frame panel thickness:14mm
Bottom frame: 36# H-section steel
Motor Power: 3kw
Diameter of shaft:70mm
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Driven type:0.6 "Chain
Cutting Device
| Type | Hydraulic, Automatic Cut-Off |
| Material For Cut-Off Modular | Cr12 steel after treatment |
| Hardness For Heat Treatment |
HRC55-60℃ |
| Power | 3kw |
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Hydraulic Pump
Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Our Service
Pre-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate
After-Sales-Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Other Product
roof sheet machine, double layer machine, roof tile machine, ridge cap machine, ceiling drywall machine, roller shutter door machine,c z purlin machine, cable tray machine, highway guardrail machine, water tube machine, decking sheet machine, sandwich panel machine and so on.
Packing Detall
| 1 | 1*40 GP container ; main machine naked and fastened with iron wire in the container. |
| 2 | Rollers were painted with oil and packed with plastic film. |
| 3 | electrics devices be packed with wooden box.for Standard export packing. |
| 4 |
All Components Fixed by steel wire with Container. |
FAQ:
1. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
2. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
3. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
