Product Details:
|
| Product Name: | Trapezoid Long K Span No Girder Curving Roofing Sheet Cold Roll Forming Machine | Machine Speed: | 8-12m/min |
|---|---|---|---|
| Machine Power: | 7.5kw+3kw+1.5kw+1.5kw | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| High Light: | k span forming machine,arch sheet roll forming machine |
||

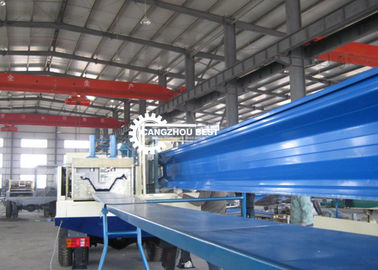

Trapezoid Long K Span No Girder Curving Roofing Sheet Cold Roll Forming Machine
Specification
| Condition | New |
| Use | Roof and wall |
| Brand Name | BEST |
| Voltage | 380V 50Hz 3phases |
| Warranty | One year |
| Roller | 5 roller |
| Type | Arching Machine |
| Production Capacity | 8-12m/min |
| Model Number | Horizontal arch machine |
| Dimension(L*W*H) | 8000mm*1500mm*1300mm |
| Base | 350H steel |
| Dimater of shaft | 70mm |
| Roller material | 45# steel or hard chromium plating |
| Cutting type | Hydraulic cutting type |
| Cutting blade | Cr12 |
| Tile Type | Colored Steel |
| Power(W) | 5.5KW |
| Weight | 2-3t |
| Color | As your request |
| Material thickness | 0.2-0.8mm or As your request |
| Material width | 1000mm or As your request |
| Transmission type | Chain transmission+deceleration motor |
| Automation | Full-automatic |
| Control system | PLC |
| Place of Origin | Hebei, China (Mainland) |
| After-sales Service Provided | Engineers available to service machinery overseas |
ONE SET OF MACHINE INCLUDED:
1. MAIN MACHINE
2. CRANE(OPTIONAL)
3. TRUCK AND CRANE (OPTIONAL)
HIGH SPEED OF CONSTRUCTION
With UCM Mobile Factory, a 1000-square meter structure can be built in 24 hours. Using the high speed of fabrication and seaming of panels,a crew of 10 to 12 workers can fabricate and erect nearly 100 arched panels in one day.
LOW COST
Due to the above reason, the coast of construction of a UCM Building is less than that of conventional and prefabricated buildings.
ON-SITE MANUFACTURING
The UCM Mobile Factory is taken directly to the construction site and the building is fabricated completely on-site. No costs of shipping of building components from a fabrication shop are incurred.
MOBILITY AND ACCESS TO REMOTE AREAS
Our trailer-mounted UCM Factories can be easily towed by and ordinary vehicle to any remote part of the country and put into operation the moment it arrives at the site without any delay whatsoever.

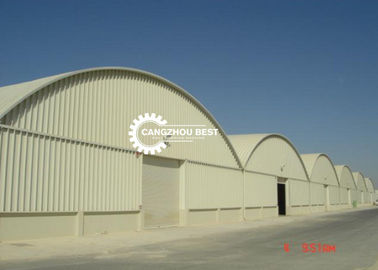

NO STRUCTURAL COLUMNS, BEAMS OR TRUSSES REQUIRED
The UCM arches are designed to be totally self-supporting and do not require any support structure such as is needed in standard steel frame buildings.
SAVINGS IN MANPOWER
A crew of approximately 10 to 15 trained men can erect a 1000 square meter building in a single day. You can build your UCM buildings in either steel or aluminum, pre-painted in an unlimited range of colors. We also stock most of our coils and immediately ship with our unit to the site.
Installation and training:
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 18 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
