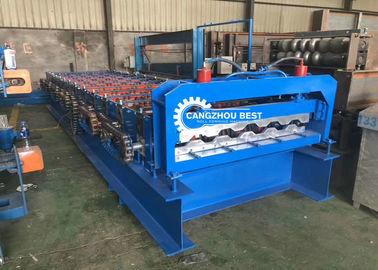

CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet

CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet
CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet

Large Image :  CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY688
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet

Description
Product Name: Steel Structure Galvanized Metal 688 Decking Sheet Cold Roll Forming Machine Color: Blue Or As Your Request
Control System: PLC Driven System: Chain Or Gear Box
Power: 22kw Material Thickness: 1.5mm
High Light:

panel roll forming machine

,

cold roll forming machine

Steel Structure Galvanized Metal 688 Decking Sheet Cold Roll Forming Machine



Specifications of the equipment



No Deck Metal Floor Machine
1 Dimensions (L*W*H) 14000*1500*1300mm
2 Total power

Motor power-22kw

Hydraulic power-4kw

3 Rows of rollers 24 rows
4 Productivity 10-12m/min
5 Diameter of shaft 95mm
6 Voltage 380V 50Hz 3Phases
7 Machine body 450mm H-model Steel
8 Middle plate 22mm steel
9 Weight 14000kg
10 Shafts 45# steel quenching treatment
11 Rollers 45# steel plated with chrome

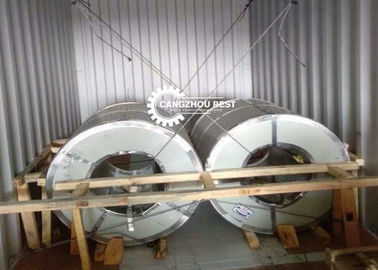

12 Raw material processed

Pre-painted plate/ galvanized plate

0.5-1.5mm



Components of machine:
Decoiler 1set
Feeding & guiding device 1set
Pressing system 1set
Main roll forming machine 1set
Cutting device 1set
Hydraulic cutting system 1set
PLC Controlling system 1set
Run out table 1set



Working Flow:

Decoiling→Feeding & Guiding→Flattening(If needed)→Pre- Punching/Cutting(If needed)→Roll Forming→Post Step pressing/Punching(If needed)→Post Cutting→Finished Products To Support Table

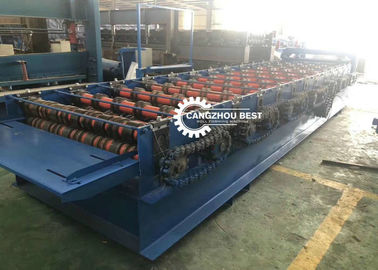

Rollers
In order to get high quality product, our machine adopts welded
steel frame structure, AC frequency conversion motor reducer drive,
chain transmission, roller surfaces polishing, hard plating,
heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm.



Computer Control Cabinet

It adopts MITSUBISHI PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.



Hydraulic Station

It is derived by a Gear Pump. After filling the hydraulic oil into the

hydraulic oil tank, the pump could drive the hydraulic cylinder to realize

the cutting function.The system includes a set of hydraulic tank,

a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.

Power of The Pump:4kw



Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12

Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine.



Entry Beach

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.





Our Service

1.18 months after shipment or 18 months after installation and commissioning at Buyer's site, whichever come first should be deemed as the period of warranty.



2.Installation and commissioning

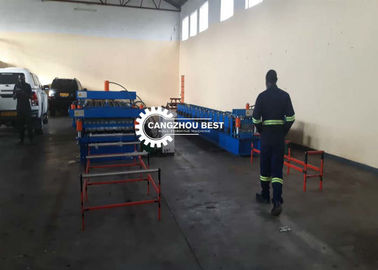

Turnkey installation and commissioning of complete roll forming lines;



Supervision of installation and commissioning;



Training of Customers' technician/workers during commissioning;



Long-term operators of the mill, if requested;



3.Breakdown Support



Reliance's team of skilled and experienced engineers is equipped to deal with any type of breakdowns.



Immediate technical assistance and advice by phone and/or e-mail;



Technical service work performed on Customer's site, when required;





Urgent supplies of mechanical and electronic components;



CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet 0CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet 1CE Steel Structure Cold Roll Forming Machine For Galvanized Metal 688 Decking Sheet 2
