Product Details:
|
| Name: | Supermarket Shelf Upright Racking Metal Roll Forming Machine For Storage | Condition: | New |
|---|---|---|---|
| Material: | Galvanized | Control System: | PLC Control |
| Material Of Rollers: | Gcr15, Quench HRC58-62 Plated Chrome | Place Of Origin: | Hebei, China |
| Cutting Mode: | Hydraulic Type | Drive System: | Gear Box |
| Warranty: | 18 Month | Material Of Shaft: | 45# Steel |
| High Light: | sheet metal roll forming machines,steel roll forming machine |
||
Supermarket Shelf Upright Racking Metal Roll Forming Machine For Storage
1. What is upright rack machine?
Storage Rack Roll Forming Machine, Upright Shelf Roll Forming Machine is one brand equipments used for making rack for supporting supermarket shelf, Storage Rack, Ware House Rack and others.The Upright Shelf Roll Forming Machine can be called as storage rack roll formign machine, it adopts three pieces cutting blades for ensure the shelf rack product is beautiful.
This Storage Rack Roll Forming Machine adopts servo controlled material feeding technology for complex punching to guarantee precision.Except this, we also manufacture solar rack roll formingMachine,Pallet Rack Roll Forming Machine,Unistrut Forming Machine.
2. Main parameters:
Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
Working Speed: 12-15 meters / min
Forming Steps: 18 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
Main Power with reducer: 11KW WH Chinese Famous
Cutting: Hydraulic Cutting Cr12mov
Material of Cutting Knife: Cr12Mov, Quench HRC58-62
Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
The whole machine is controlled by industry computer-PLC.
PLC--Panasonic, Japan English and Chinese Language
Touch Screen--Panasonic Japan
Encoder--Omron, Japan
Electric parts--Schneider

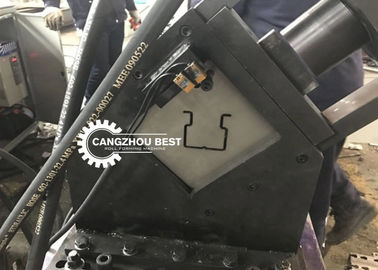

Cutting holder: straight cutting by 3 pieces of blades
3. Machine parts list
| S.N | Equipment name | Quantity |
| 1 | 3T hydraulic un-coiler | 1 set |
| 2 | Leveling device 400mm | 1 set |
| 3 | Servo feeding device 400mm | 1 unit |
| 4 | Press machineJH21-80 | 1 unit |
| 5 | Main roll forming machine | 1 set |
| 6 | Cutting holder | 1 set |
| 7 | Hydraulic station | 1 set |
| 8 | Control system ( including control box) | 1 set |
| 9 | Out tables | 2 units |
| 10 | Spare parts | 1 package |
| 11 | Cutting dies | 1 set |
| 12 | Punching die set | 1 set |
4. Advantages of Our Machines

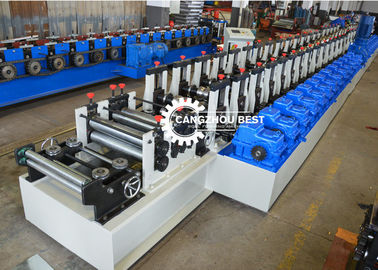

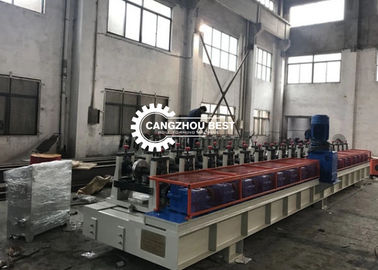

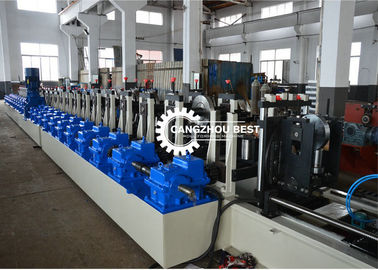

5. Photos:
