Product Details:
|
| Name: | Colour Coated Roofing Sheets Double Layer Roof Sheet Roll Forming Machine | Material: | PPGI/G |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | Conreol SystemShaft Material: |
| Control System: | PLC | Warranty: | 2 Year |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

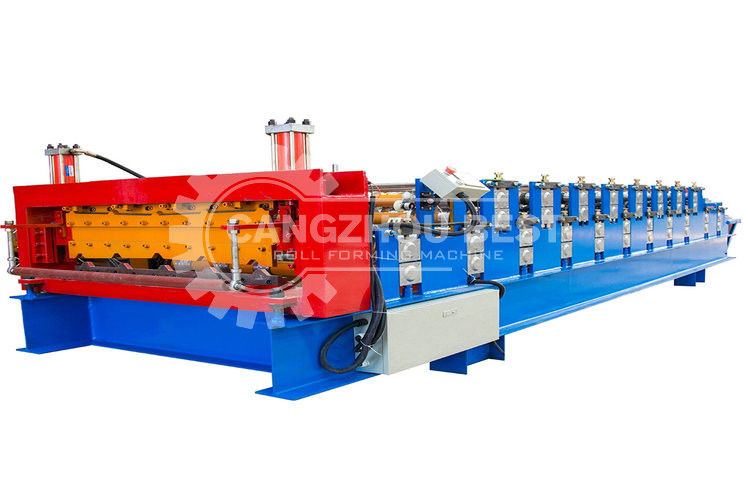

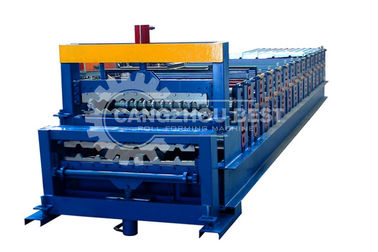

Colour Coated Roofing Sheets Double Layer Roof Sheet Roll Forming Machine
Main Parameters:
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 914-1250mm |
| 3 | Roller station | 11-18 rows or custom as customer's requirements |
| 4 | Thickness of feeding material | 0.3-0.8mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | 45# steel |
| 7 | Diameter of shaft | 70-80mm |
| 8 | Voltage | 380V 50Hz 3phases |
| 9 | Wall thickness of main forming machine | 12-18mm steel plate |
| 10 | Main forming machine body | 300-400 mm H steel |
| 11 | Motor power | 4-7.5 kw |
| 12 | Weight | About 5-15T |
| 13 | Custom | According to customer's requirements |
1.Main features of roll former china double layer roof panel forming machine
The advantages of double layer roof panel machine are as follows:
1. Able to produce two different profiles.
2. Save space,more convenient.
3. Easy operation, low maintenance cost
4. Stable and durable
2.Detailed Images of roll former china double layer roll forming machine
Machine Parts
(1) Double layer roof panel machine pre-cutter
Brand: BEST Original: China
Avoid wasting material.

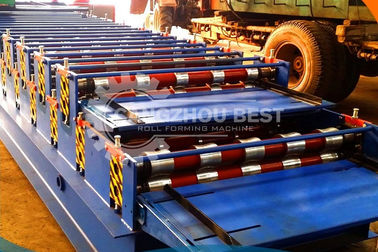

(2) Roll Former China Double layer roof panel machine rollers
Brand: BEST
factured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 300# H type steel by welding
(3) Roll Former China Double layer roof panel machine post cutter
Brand: BEST Original: China
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 25mm steel plate by welding
Hydraulic motor:3.7KW, Hydraulic pressure range: 0-16Mpa
(4) Roll Former China Double layer roof panel machine PLC control system
Brand: BEST Original: China
Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
(5) Roll Former China Double layer roof panel machine product show
Brand:BEST Original: China
(6) Roll Former China Double layer roof panel machine decoiler
Brand: BEST Original: China
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1250mm, coil ID range 470mm±30mm
Capacity: Max. 9 Ton
(7) Roll Former China Double layer roof panel machine exit rack
Brand: BEST Original: China
Un-powered,one unit
Other detailes of double layer roof panel forming machine
Suitable for material with thickness 0.3-0.8mm
Applicable material:Painting Steel, Galvanized Steel,Tension Grade: 245Mpa or 550Mpa
Shafts manufactured from 45#,Main shaft diameter=φ85mm,precision machined
Motor driving,Gear chain transmission
Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15m/min
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of double layer roof panel machine
1. The warranty of double layer roof panel machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
