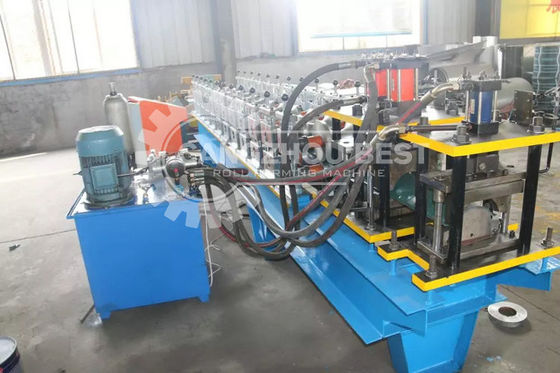

Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press

Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press
Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press
Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press

Large Image :  Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE/ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD6000-10000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/months

Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press

Description
Voltage: 380V 50Hz 3phases Condition: New
Weight: About 3 Tons After-sales Service Provided: Engineers Available To Service Machinery Overseas
Use: Produce Ridge Cap Tile Warranty: 1 Year
High Light:

ridge cap forming machine

,

ridge cap machine

                               Color Coated Steel Sheet Ridge Cap Roll Forming Machine/ Tile Press for Ridge Cap

Technical Parameters (depending on specific requirements of users)
Suitable steel plate Type Color steel plate
thickness 0.3-0.8mm
Feeding width As users needs
Effective width As users needs
Production speed 8-12m/min
Roller stand 14 rows
Diameter 60mm
Main power 4kw
Pump power 3kw
Side panel of machine 14mm
Roller material Carbon Steel 45#
Blade material Cr12, quenched
Control system PLC control
PLC control 380V 50Hz 3phases(changeable as needs)
Main structure of the machine 300mm H-Beam

Other components

Un-coiler:

5 tons passive decoiler

Coil inner Diameter: 460-520mm

Max out diameter of the coil: 1500mm

Max Coil Width: 1250mm



Cutting:

(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.

(2) Material of blade: CR12 with heat treatment

(3) Length measuring: Automatically

(4) The cutting thickness: 0.3- 0.8mm

(5) Hydraulic Station Power: 4 KW



Hydraulic Station



It is controlled by wheel oil pump. After filling the hydraulic oil into

the hydraulic oil tank ,the pump drive the cutter machine to begin the

cutting job.

Components: The system includes a set of hydraulic tank, a set of hydraulic

oil pump, two hydraulic pipes. and two sets of electromagnetism valves.





Out table:

It adopts welded steel and supported roller to transmit the products.

Size:1500*1350*1000mm



Control Box



(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)

(2) length & quantity measurement automatically;

(3) length & quantity controlled by PLC

(4) Length inaccuracy can be amended easily.

(6). Control panel: Button-type switch and touch screen

(6) Unit of length: millimeter (switched on the control panel)

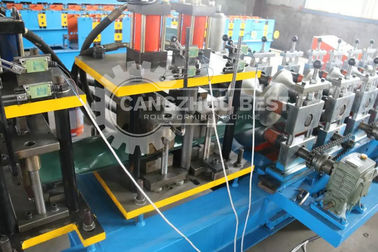

Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press 0

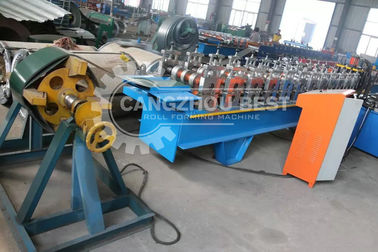

Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press 1

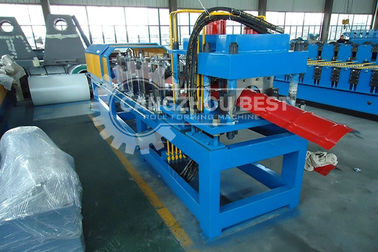

Color Coated Steel Sheet Ridge Cap Roll Forming Machine Tile Press 2
