Product Details:
|
| Name: | 840 850 Double Layer Roofing Sheet Forming Machine Steel Roofing Supplier | Color: | As Your Require |
|---|---|---|---|
| Material: | PPGI GI | Shaft: | 70mm |
| Voltage: | 380V/50HZ/3PHASE | Warranty: | 2 Year |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
840 850 Double Layer Roofing Sheet Forming Machine Steel Roofing Supplier
Double layer roofing tile machine: can produce two type sheets, one corrugated sheet and one IBR sheet. The input material are both 1000 mm width with thickness 0.3-0.8mm. Machine speed 8-12 m per minute. With pre-cutting device and double inches chain. This machine cheaper and stable. Widely used in South America zone. Expecially Bolivia. We can also supply you the PPGI and GI coils. We know some good supplier. We can put the coils with the machine in the same container.
Machine Component
| Decoiler | 2set |
| Roll Forming | 1set |
| Cutting Device | 1set |
| Hydraulic Pump | 1set |
| PLC Control Box | 1set |
| Output Table | 1set |
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Decoiler
|
Max Width |
1500mm |
|
Inner Diameter |
450-550mm |
| Out Diameter | 1500mm |
| Capacity | 5000kg |
| Type | Manual Or Hydraulic |
Roll Forming Machine

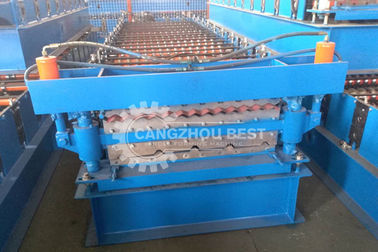

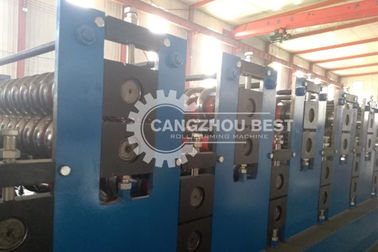

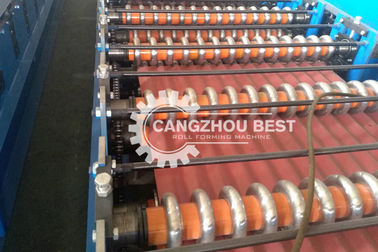

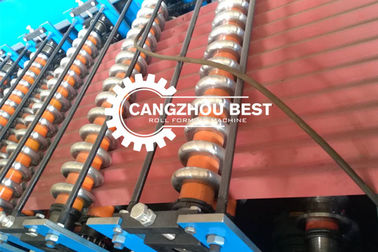

Double layer roll forming machine Roll Forming Machine
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: About 8500 1650 1500 mm (L*W*H)
Weight of main part: 6.5 tons
Voltage : 380 V 50 HZ 3 PHASE(As customer’s need)
Roller fixer : Middle plate
Frame : 350 H steel welded
Drive mode: Chain
Material of rollers: 45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 80 mm
Number of rollers : 13 rollers(Up layer)15 rollers(Down layer)
Main power: 5.5 kw
Cutting Device
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW
PLC Control Box
| Type |
PLC Frequency Control System with touch screen |
|
PLC Brand |
Delta |
|
Encoder Brand |
Omron |
|
Length Error |
±2mm |
|
Language |
English and Chinese |
Hydraulic Pump
Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
Our Service
| Pre-Sales-Service |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. |
| After-Sales-Service |
Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas. If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
