Product Details:
|
| Name: | Color Steel Roof Wall Panel Double Layer Roll Forming Machine Roofing Supplier | Color: | As Your Require |
|---|---|---|---|
| Material: | PPGI GI | Shaft: | 70mm |
| Voltage: | 380V/50HZ/3PHASE | Warranty: | 2 Year |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
Color Steel Roof Wall Panel Double Layer Roll Forming Machine Roofing Supplier
Double layer roofing tile machine: can produce two type sheets, one corrugated sheet and one IBR sheet. The input material are both 1000 mm width with thickness 0.3-0.8mm. Machine speed 8-12 m per minute. With pre-cutting device and double inches chain. This machine cheaper and stable. Widely used in South America zone. Expecially Bolivia. We can also supply you the PPGI and GI coils. We know some good supplier. We can put the coils with the machine in the same container.
Machine Component
| Decoiler | 2set |
| Roll Forming | 1set |
| Cutting Device | 1set |
| Hydraulic Pump | 1set |
| PLC Control Box | 1set |
| Output Table | 1set |
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Decoiler
|
Max Width |
1500mm |
|
Inner Diameter |
450-550mm |
| Out Diameter | 1500mm |
| Capacity | 5000kg |
| Type | Manual Or Hydraulic |

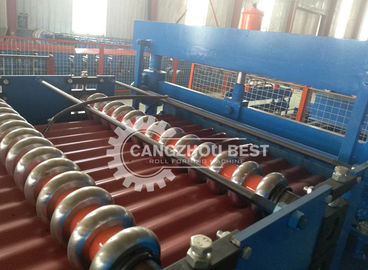

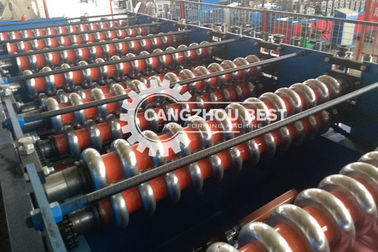

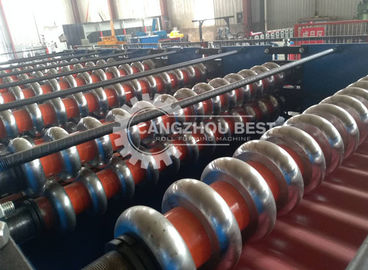

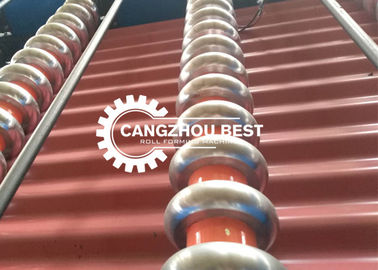

Roll Forming Machine
PLC Control Box
| Type |
PLC Frequency Control System with touch screen |
|
PLC Brand |
Delta |
|
Encoder Brand |
Omron |
|
Length Error |
±2mm |
|
Language |
English and Chinese |
Hydraulic Pump
Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
Our Service
| Pre-Sales-Service |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. |
| After-Sales-Service |
Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas. If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
WHY CHOOES CHBEST COMPANY
1) Q: Do you have after sales support? A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market? A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you? A: Yes, we will. The core of our company culture is honesty and credit. Best is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken? A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport? A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials? A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil. Hope we could establish win-win business relations in the soon future!
