Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material

Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material

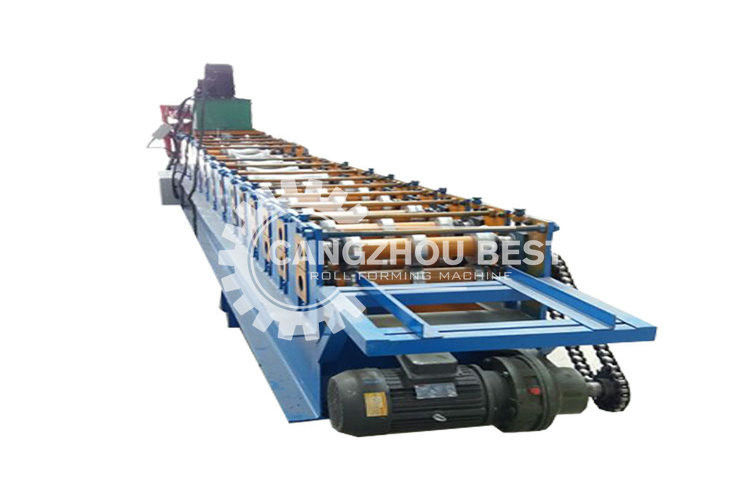

Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material

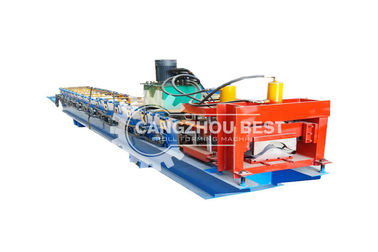

Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material

Large Image :  Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE/ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD6000-10000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/months

Metal Galvanized Steel Sheet Tile Roof Forming Machine For Building Material

Description
Voltage: 380V 50Hz 3phases Condition: New
Tile Type: Colored Steel Use: Roof
Certification: CE/ISO9001 Raw Material: Ppgi Or Galvanized Sheet Coil
High Light:

ridge cap forming machine

,

steel roof tile forming machine

Metal Galvanized Steel Building Material Roofing Sheet Tile Metal Ridge Cap Roll Forming Machine



Technique parameters

(1) Processing material: aluzinc/galvanized steel/colored steel coil

(2) Material thickness: 0.25-0.8mm

(3) Effective width: as design

(4) Feeding width: as design

(5) Main motor power: 4 kw

(6) Pump power: 4kw

(7) Shaft diameter: 75mm

(8) Forming steps: 13steps

(9) Roller material: 45# forged steel, with hard chrome plating

(10) Main frame: 350H steel

(11) Medium plate thickness: 16mm

(12) Control systerm:Delta PLC computer control with touch screen and inverter

(13) Cutting blade material:Cr12

(14) Speed:about 2-4meter/min

(15) Drived by Chain:1inch

(16) Machine size (mm):6500*800*1300mm

(17) Machine weight:about 2Ton

(18)Power supply:380V,3 PHASE ,50HZ (according to your request)

No. Glazed ridge cap roof machine
1 Suitable to process Color alu-zinc steel coil
2 Roller 12-16Rows
3 Dimensions 6.7*1*1.5m
4 Motor Power 5.5Kw
5 Thickness of the plate 0.3-0.8mm
6 Productivity 3-5m/min
7 Material of the cutting blade Cr12,Quenched treatment 58℃-60℃
8 Diameter of the roller Φ50mm
9 Weight About 3200kgs
10 Main structure of the machine 350H beams
11 Processing precision Within 1.0mm
12 Side panel of machine 16mm
13 Chain Wheel and Cycle Chain 1 Inch
15 Voltage 380V 50Hz 3phases or as customer's need
16 Control system PLC control (Delta)
20 Frequency system Delta
21 Drive mode Motor driver
22 Touch screen Delta
23 Rolling materials 45# forging steel with chromium plate
24 Length Tolerance ±2mm
Name:Manual decoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading
capacity:5T,Inner diameter: 500-508mm
Name:Feeding table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron.

Name: Main rollers



Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Name:Computer Control Cabinet
PLC:Delta PLC(or according to customer's inquirement)

Touch Screen:Delta Frequency system:Delta Chinese/English and Russian Or Spanish

Name: Motor driver



Main motor size :5.5Kw

Brand: The famous brand from Jermany or according to customer's need

Name :Hydraulic station power



Hydraulic station power: 4Kw, the brand is Lichao, Shanghai
Name: Cutting head
It adopts the Motor drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

Name: Received goods table



It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

2 pieces 3meters
