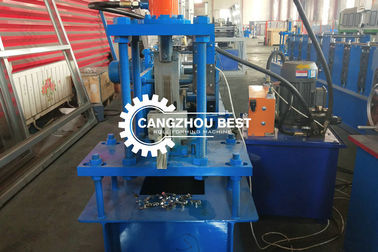

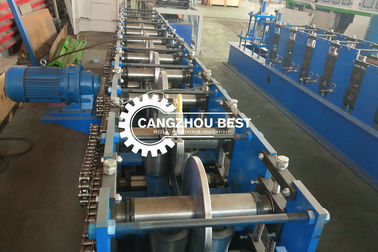

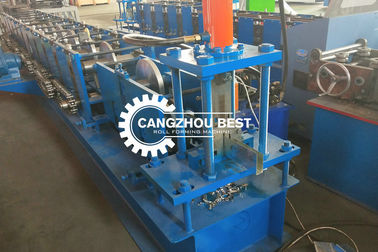

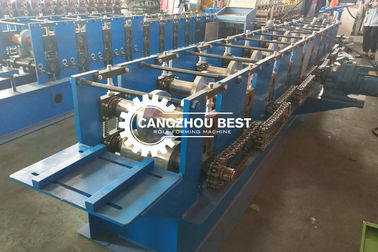

Roller Door Guide Shutter Door Roll Forming Machine / U Channel Roll Forming Machine

Roller Door Guide Shutter Door Roll Forming Machine / U Channel Roll Forming Machine
Roller Door Guide Shutter Door Roll Forming Machine / U Channel Roll Forming Machine Roller Door Guide Shutter Door Roll Forming Machine / U Channel Roll Forming Machine Roller Door Guide Shutter Door Roll Forming Machine / U Channel Roll Forming Machine Roller Door Guide Shutter Door Roll Forming Machine / U Channel Roll Forming Machine

Large Image :  Roller Door Guide Shutter Door Roll Forming Machine / U Channel Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Roller Door Guide Shutter Door Roll Forming Machine / U Channel Roll Forming Machine

Description
Product Name: Roller Door Slate Profile Sliding Door Guide U Channel Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 15m/min Without Punching Machine Dimention: 11.5mx1.8mx1.4m
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

cold roll forming machine

,

profile roll forming machine



Roller Door Slate Profile Sliding Door Guide U Channel Roll Forming Machine


Working flow


Decoiler-----feeding ------roll forming -----cutting----output table


Machine Component



De-coiler 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 set


Parameter


Decoiler


Type

Manual type(standard)

Hydraulic type(option)

Width

500mm

600mm

Capacity

5000kgs

5000kgs-8000kgs

Inner diameter

450-550mm

450-550mm

Outter dimater

1500mm

1800mm



Roll Forming Machine



Material specification

Galvanized and pre-painted galvanized steel.

Thickness

0.6 mm to1.5mm.

Main motor power

5.5 kw.

Hydraulic station power

3 kw.

Feeding width

124mm.

Cover width

60mm.

Yield stress

235Mpa(33KSI) ~ 345Mpa (50KSI).

Roll forming Speed

12 m/minute.

Cutting Tolerance

±2mm

Manual Uncoiler

Max. Capacity: 5000kgs.

Voltage

As per customer’s request.

Numbers of stands

12 stands/stations/pairs.

Roller material

45# steel polished and coated with chrome HRC55-60°

Shaft diameter

70mm

Shaft diameter

high grade No.45 steel after treatment

Type of cutting

Roll-formed and length-set profile cutting.



ELECTRONIC CONTROL SYSTEM



Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



HYDRAULIC PUMP STATION


Oil type: 46# hydraulic oil
 Pump brand: China brand



We do you care:

WHY CHOOES CHBEST COMPANY

1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2) Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit.  ALIBAB’s Gold supplier with BV assessment and CE certificate.



4) Q:What can you do if the machine broken?

A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q:Can you be responsible for transport?

A: Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q:Can you supply the raw materials?

A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

Hope we could establish win-win business relations in the soon future!

We produce machines according to your different profile drawings:

We do Together, dear Customer, you are CHBEST 's friends. Meeting you, serving all of you, Enjoying with you.
