Product Details:
|
| Product Name: | Building Material House Decking Floor Roll Forming Making Machine For Selling | Machine Speed: | 8-12m/min |
|---|---|---|---|
| Machine Dimention: | 11.5mx1.4mx1.4m | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Life Time: | More Than 10 Years |
| High Light: | panel roll forming machine,cold roll forming machine |
||
Decoiler------guiding------leveling------roll forming-------punching-----cut to length-----output table

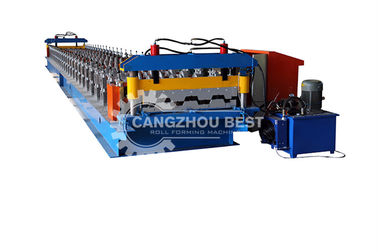

Hot Sale Metal decking floor sheet profile cold roll Forming machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology,and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |

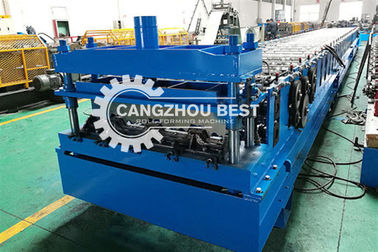

roll forming
| Technical parameters: | ||
| 1 | Name of commodity & specification |
Building Material House Decking Floor Roll Forming Making Machine For Selling |
| 2 | Main motor power | 11kw, 2 phase |
| 3 | Hydraulic motor power | 5.5kw |
| 4 | Hydraulic Pressure | 18-20MPa |
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 6 | Control System | PLC Delta Inverter |
| 7 | Main Frame | 450mm H-Beam |
| 8 | Backboard Thickness | 22mm |
| 9 | Chain Size | 66mm |
| 10 | Feeding Material | color steel coils |
| 11 | Feeding Thickness | 0.6-1.5mm |
| 12 | Feeding Width | 1000mm |
| 13 | Effective width | 720mm |
| 14 | Productivity | 8-10m/min |
| 15 | Roll Station | 28 |
| Type |
bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |

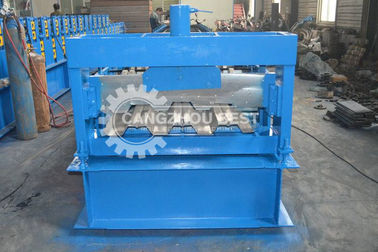

| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
|
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
WHY CHOOES CHBEST COMPANY
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
Hope we could establish win-win business relations in the soon future!
