PLC Control Metal Deck Roll Forming Machine With 21 Forming Stations

PLC Control Metal Deck Roll Forming Machine With 21 Forming Stations
PLC Control Metal Deck Roll Forming Machine With 21 Forming Stations PLC Control Metal Deck Roll Forming Machine With 21 Forming Stations PLC Control Metal Deck Roll Forming Machine With 21 Forming Stations PLC Control Metal Deck Roll Forming Machine With 21 Forming Stations

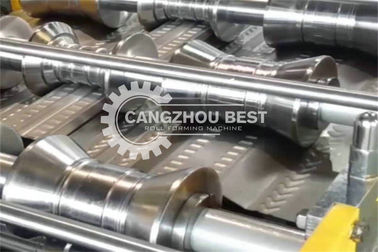

Large Image :  PLC Control Metal Deck Roll Forming Machine With 21 Forming Stations

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD14000-28000
Packaging Details: Main steel deck rollformer is nude packing and fastened with steel wire, electric and hydraulic parts are wrapped with plastic film.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

PLC Control Metal Deck Roll Forming Machine With 21 Forming Stations

Description
Condition: New Application: Available For Producing Closed Type Floor Decks With Different Dimensions
After-sale Service: Engineers Available For Serve At Clients' Country Raw Material: Galvanized Sheet
Warranty: 2 Year Certification: CE/ISO9001
High Light:

panel roll forming machine

,

cold roll forming machine

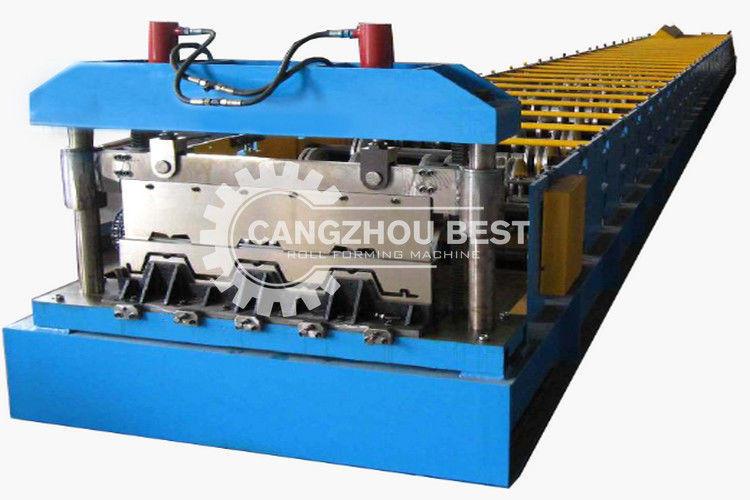

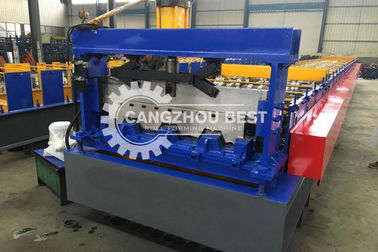

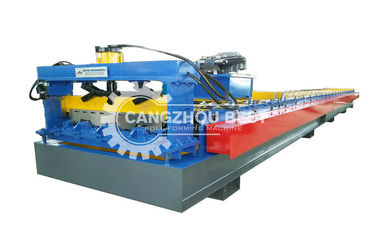

PLC Control Hydraulic Cutting System Metal Deck Roll Forming Machine With 21 Forming Stations

Application:

Steel Roof Deck: The Steel Roof Decks Are Manufactured Generally For The Construction Of Pitched, Flat, Or Curved Roofing Almost On All Kinds Of Buildings;
Composite Metal Deck: The Composite Metal Decks Have Embossments In The Vertical Ribs Designed To Interlock With Concrete Slabs, Creating A Reinforced Concrete Slab To Develop A Composite Floor System.
Metal Form Deck: Metal Form Decks Are Produced And Used Extensively Also In Floor Construction As A Permenant Steel Base For Poured Reinforced Concrete Floor Slabs.
Architectural Deck: This Kind Of Steel Deck Offers Architects And Engineers The Ability To Creat Amazing Designing For Striking And Spacious Interiors, As Well As Dramatic And High-Performing Exteriors.
Bridge Deck: Where A Bridge Has Main Beams Installed At Suitable Centres, Steel Decking May Be Placed Across The Beams Without Additional Supports, Suitable For New Construction And Bridge Rehabilitation.

For The Roofing Decking Machine Un-Coiler, Many Clients Will Equip 10 Tons Capacity And With Coil Car For Heavy Weight Loading

Quick Detail:

  1. Thickness : 0.8-1.2mm
  2. Material : GI/PPGL
  3. Coil Width : 1500mm
  4. Effective Width: 840 Mm
  5. Material Weight : 8 Tons, 10tons
  6. Coil Inner Diameter : 508mm
  7. Driven Way: By Driven Motor
  8. Cutting Way: By Hydraulic Group
  9. Cutting Tolerance : ±1mm

Machine List:

  1. 10Tons*1500mm Hydraulic Un-Coiler With Coil Car
  2. Roll Forming Machine With Tools
  3. Hydraulic Cutting Device
  4. Run Out Rack Or Automatic Stacking Device
  5. PLC Control Systems

Description/Technical Parameter Details Of Complete Line:

  • 10TX1500mm Hydraulic De-Coiler With Coil Car

Expansion System By Hydraulic Group, Pump Motor: 7.5KW

Driven Motor To Run The Coil, Motor: 7.5KW

Inverter Brand: TAIWAN Delta Brand

Coil Inner-Diameter=510+/-30mm

Coil Width = Max.1500mm

Taper Wedge Expand Type

Load Capacity = Max. 10Tons

Snubber Arms On Top By Pneumatic Or Hydraulic As Per Order

The Coil Car Included As Standard

  • Roll Forming Machine With Cutting Details As Below Table :
Suitable Roll Forming Material GI/Alu-Zinc Sheets
Thickness 0.8mm-1.2mm
Coil Input Width 1500mm
Carriage Frame Design

Wall-Plate-Frame-Design

Wall Plate Thickness 25mm

Roll Forming Stages 38 Stages
Roller Material 45# Steel, CNC Lathes, Hard Chrome Coated
Shafts Diameter Φ95mm
Main Motor Power 22Kw×2 With Reducer
Roll Forming Speed 12-15 M/Min As Standard Design
Hydraulic Group Power 7.5Kw
Material Of Cutting Blade Cr12, Hear Treatment
Cutting Design After Cut-Off, There Is Waste
Electric Voltage Standard 380V/50Hz/3PH Or As Per Request
Color Of Machine Painted RAL 5015(Blue) Or As Requirements
  • PLC Control System

Siemens Brand PLC And Touch Screen, Schneider/ Shihlin/ Delta Brand Inverter, Omron Encoder

Cut-To-Length Tolerance≤±1mm

Control Voltage 24V

Schneider Brand Low Voltage Electric Elements

  • Product Rack Un-Powered, 3 Units



Product Description

Technical Specification


Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm




Roll forming




Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision



Forming stations 20-38 stations(according to the profiles)
Machine rollers high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ80-90mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 2 inch chain or gear box(option)
Machine power 15kw-22kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm


Cutting


Type bearing sliding type
Blade material Cr12mov quenching and grinding
Frame processing the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type


Stacker


Type Manual Auto(option)
Length 1.5m-2m 6m or 12m




PLC


Main item Parameter detail
PLC Delta(standard) or according to your request
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase




Hydraulic pump:


Main Item Parameter detail
Motor 3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system Cooling fan
