High Speed Running Customized Sheet Metal Decking Roll Forming Machine Controled by PLC System
Itroduction:

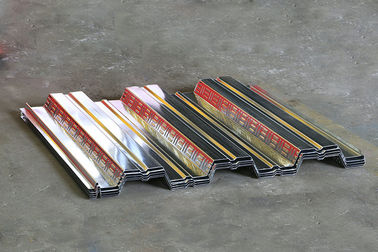

The metal deck forming machine is aided and optimized by computer. The metal deck produced by this machine has high strength with big wavelength. Used on high buildings , it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economizes steel and cuts down investment accordingly.
·Professional designing for manufactures decking steel.
·Automatically continually manufactures high quality product with PLC.
·Easy operation : Directly Input the data on the touch screen.
·Customers decide the profile of products.
·Saving time and cost owing to high speed running with hydraulic system.
specifications
| No. | Type | Specification | |
|
1 |
Row Material |
Type | Colored steel plate, galvanized board, aluminum plate ect. |
| Feeding width | 1220mm | ||
| Effiect width | 1000mm | ||
| Thickness | 0.8 - 1.0mm | ||
|
2 |
Main body |
Roller station | 26 Stations |
| Diameter of shaft | 90mm | ||
| Shaft material | 40Cr , Numerical Control Machining To HRC28-32, Then Polishing and Hard Plating | ||
| Roller material | GCr15# Steel , Heat Treatment to HRC58-60, Then Polishing and Hard Plating | ||
| Frame | 400mm H Steel | ||
| Frame thickenss | 20 mm | ||
| Working speed | 8-12m/min | ||
| Size (L*W*H) | About 15200*1850*1510mm | ||
| Weight | About 16.5 Tons | ||
|
3 |
Power |
Motor power | 11 kw + 11 kw ( two driving motors ) |
| Hydraulic power | 5.5 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Chain ( 2 Inch ) | ||
|
4 |
PLC Control System |
PLC | Delta brand |
| Language | Chinese and English | ||
| Operate Type | Manual and automatic | ||
| Invertor | Delta brand | ||
|
5 |
Cutting Device |
Cutting type | Hydraulic cutting |
| Material of blade | Cr12,quenching treatment | ||
| Length Cutting Tolerance | ±1.0mm | ||
Working flow
Uncoiling — Feeding and Guiding — Roll forming — Cutting — Output table
Technical parameters
(1) 5T Manual Un-coiler
(2) Main Roll Forming Machine
(3) Machine Structure
(4) Hydraulic Cutting System
(5) Computer Control Cabinet
(6) Hydraulic System
Advantage:
1. We use Automatic control software to manage productive information.
2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. First in quality
5. First in time
6. First in price
7. First in services

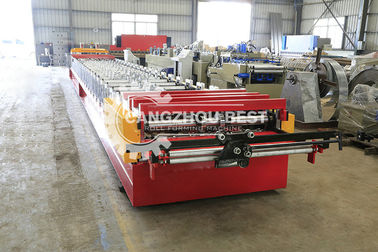

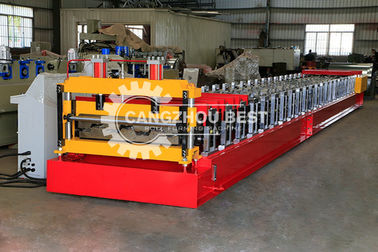

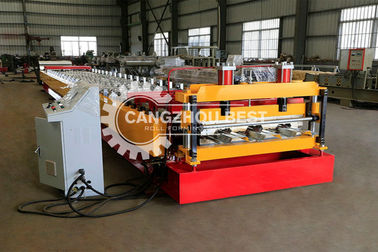

Machine picture
