Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage

Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage
Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage

Large Image :  Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD14000-28000
Packaging Details: Main deck rollformer is fastened inside of the container by steel wire with nude packing, electric and hydraulic parts are wrapped with plastic film.
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage

Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V 50Hz 3phases
Condition: New Use: Floor
Certification: CE/ISO9001 Usage: Floor With Concrete
W Material Thickne: 0.8-1.5 Mm
High Light:

panel roll forming machine

,

cold roll forming machine

Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage



Main Specifications

No. Item Specification
1. Material Specification 1. Thickness: 0.8-1.2mm
2. Material Width / Feeding Width: 1219mm
3. Yield Strength: G300-G550Mpa
4. Applicable Material: Galvanized Steel, Color Steel, Stainless Steel

2. Production Specification 1. Roller Stations / Forming Steps: 36 roller stations
2. Roller Material: GCr15 Steel, with 0.05mm thick Chrome plated
3. Diameter of Shaft: 120mm
4. Shaft Material: 40Cr with heat treatment and chrome plated
5. Drive Type: electrically driven via chain and sprocket
6. Main Power: 11kw * 2
7. Forming Speed: 12-18m/min
8. Cutting Type: hydraulically powered mold cutting
9. Material of Cutting Blade: Cr12Mov, HRC 58-62
10. Cutting Tolerance: 10m+/-0.5mm



Description

This floor decking sheet machine is used to produce steel floor decks with 50mm depth and 460mm pitch distance. Main material can be run are galvanized steel coils with the thickness of 0.8mm to 1.2mm and raw material width of 1250mm.



Main components of this machine are decoiler, guiding and leveling device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc.



Fully automatically controlled by PLC and operated by touch screen, users only need to input the production data such as production quantity and cutting length, then the machine will start to work accordingly.



Most Important Parameters Of Steel Decking Forming Line

Main Components No. Item Specifications
5Ton Manual Uncoiler 1. Mandrel Expanding Manually adjust the screw to accommodate coil inner diameter
2. Coil Unwinding Unpowered unwinding
3. Capacity 5000kgs; max 6000kgs

Steel Deck Rollformer 1. Roller Stations 26 stations based on deck profile and material
2. Forming Speed 15-20m/min
3. Main Power 11kw * 2
4. Drive Electrically driven via chain and sprocket
5. Shaft Material 40Cr, with heat treatment and chrome plated
6. Roller Material No.45 steel with quenching and tempering and chroming

Hydraulic Cutoff 1. Type Stop-cutoff, rest of the line stop running when cutting
2. Hydraulic Power 4kw
3. Balde Material Cr12 Mov, HRC58-62





Machine Component Specification
5Tons Manual Deocoiler Coil Inner-diameter=510±30mm. Coil Outer-diameter Max. 1300mm;
Taper wedge expanding system
Load Capacity: Max. 5 Tons; Coil Width Max. 1250mm;
Decking floor roll forming machine Gear/Sprocket driving; 23 stations roll forming
Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
Shafts Diameter=ф75/ф95mm, Precision Machined, fine Polished
Main motor =15KW, Frequency speed control
Max Line speed of roll Former: Approx. 8-15m/min
Hydraulic Cutting Device Stop to cut, Post cut, slug cutting
Cutting tool material: Cr12, Heat treatment
Hydraulic unit, Pump motor =5.5KW
PLC Control System Control the quantity & cutting length automatically
Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc
Cut-to-length tolerance≤±2mm
24V Control voltage
Controller with forward/backward/emergency stop buttons
Product Rack Un-powered, 3 units

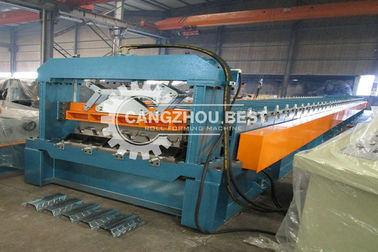

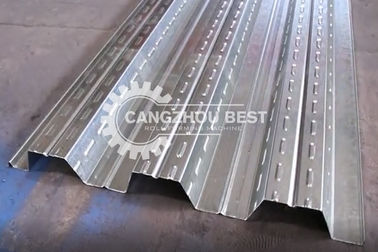

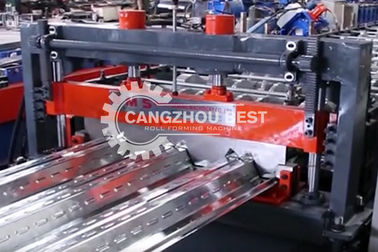

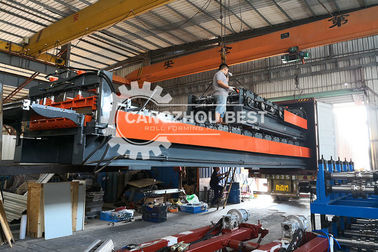

machine pictures

Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage 0Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage 1

Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage 2
