Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe

Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe
Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe

Large Image :  Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD18000-26000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe

Description
Application: Downspout & Downpipe Cutting Motor: 2.2 KW ( 3XAC380v, 50HZ)
Roller Material: High Quality 40Gr After Treating Sheet Thickness: 0.4 To 0.6 Mm
Max Bending Angle: 90 Machine Functions: Bending And Locking Function
High Light:

downpipe roll forming machine

,

pipe roll forming machine

Custom Portable Downspout Machine for Rainwater Downpipe, Water Pipe

Technical Parameters of Downspout Roll Forming Machine

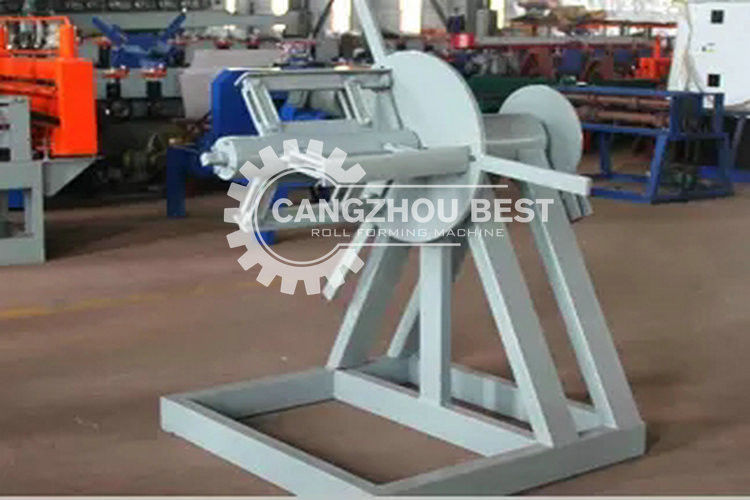

3 Ton electric decoiler

  1. Capacity: Max 3 Ton
  2. Motor Power: 2.2KW
  3. Inner Diameter of the coil: 450-600mm
  4. Outer Diameter of the coil: Max 1500mm
  5. Manual Loosen and Tension.

Roll Forming Machine Mill

  1. Machine Base: 350 H steel welded
  2. Machine structure: Chrome Pillar
  3. Roller Material: ASTM 1045, chromed 0.05mm
  4. Shaft Diameter: 70mm
  5. Motor Power: 7.5KW
  6. Downspout Machine Speed: 8-10m/min
  7. Forming Steps: 18

Cutoff Unit

  1. Cutting Type: Hydraulic cutting, roll forming part stop when cutting
  2. Hydraulic Motor Power:4KW
  3. Hydraulic Working Pressure: 12-16Mpa
  4. Material of Cutting Blade: Cr12 with heat treatment
  5. Length measuring: Automatic encoder(Omron Brand) length measuring
  6. Tolerance of Length: ±1.0mm

Controlled Panel

  1. Voltage and Frequency: 415V, 50Hz, 3Phase
  2. Control Panel: Touch screen with button-type switch
  3. Unit of Length: Millimeter (switched on the control panel)
  4. PLC Brand: Panasonic
  5. Frequency Converter Brand: Yaskawa
  6. Encoder Brand: Omron
  7. Touch Screen Brand: Siemens
  8. We adopt aviation plug for easy joint the wires by customers.
  9. You can set the cutting length and quantity on the touch screen. The machine will automatically stop after the completion of the cutting program.

Elbow Machine (Optional)

  1. Max bend angle: 90 degree
  2. Function: bend and fasten at the same time
  3. Electric Power: 2.2KW



Downspout roll forming machine components

  1. material feeding device
  2. main roll forming machine
  3. moulds pressing part
  4. mould cutting device
  5. electrical control system

Downspout Pipe Roll Forming Machine main parameters



Forming Roller Stations: 18 Stations
Forming Roller size: 36 mm (for soft quality sheet)
Forming Speed: 12 meters / min
Main motor: 3kw,
Hydraulic station power: 5.5kw
Capacity Width: Less than 200mm
Material of Sheet: Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness: 0.5 to 0.6 mm
Line structure: Portal-type frame style, 45# steel
Control mode PLC
Total Gross Weight: About 4000kgs
Line size (Lx w x h) 7000 mm×1000 mm×1100 mm
Shipment: In 1 x 40 Feet containers



Roll Forming machine for Production of Drainpipe System

  1. The downspout roll forming machine is special for manufacturing various size square downspout, Downspout & Rain gutters, Downspipe, rectangular downspout pipes used for resident building or commercial building.
  2. Downspout or Down pipe is a pipe for conveying rain water from a roof or gutter to the ground or to a drain., also referred to as Leader pipe, Down-pipe or Drains-pout.
  3. The downspouts are more and more widely applied in rain water storage solution.

Rectangular Downspout Elbow Machine

  1. Elbows are fittings that attach to the downspout.
  2. One end of the gutter elbow is crimped so that it can fit inside another elbow or downspout.
  3. Elbows are used at the bottom of the downspout at ground level to direct drainage in a particular direction.
  4. Two elbows coming from the gutter are used to span the length of the eave so the downspout can be directly mounted to the wall of the structure.
  5. The square downspout line is designed according to profile drawing sent from client, thickness 0.4mm-0.6mm


Rectangular Downspout Elbow Profiles (Downspout Crimpers)


Round Downpipe / Downspout Roll Forming Machine 0.4 - 0.6 mm Sheet Thickness

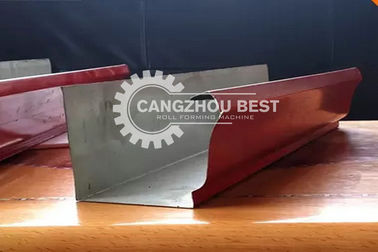

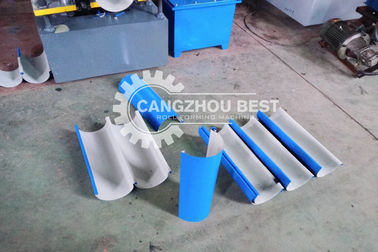

Roll Formed Profiles - Square (Rectangular) Downspout


Custom square Downspouts & Rain Gutters machines can be designed according to client’s requirements or downspipe sample.



Pipe Drawing Shows



Round Downpipe / Downspout Roll Forming Machine 0.4 - 0.6 mm Sheet Thickness

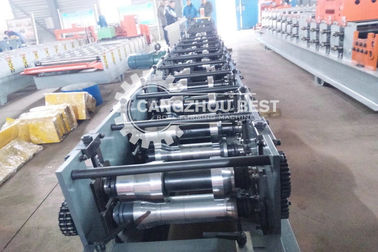

Machine Photos


Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe 2Custom Portable Downspout Machine For Rainwater Downpipe , Water Pipe 3
