Product Details:
|
| Tile Type: | Colored Glaze Steel | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Use: | Roof |
| Roller MaterialRoller Material: | 45# Steel | Usage: | Used As Roof Panel In Steel Construction |
| Roller Material: | 45# Steel | ||
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||

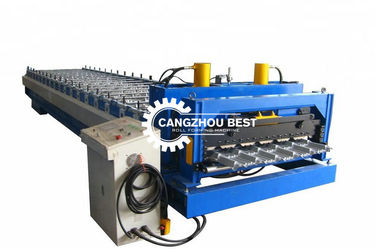

High Efficiency Standing Seam Roll Forming Machine 13 Rows Roller Station
Aluminium roofing sheet making machine Hydraulic Station:
Hydraulic motor Power: 3kw
Hydraulic oil: 46# hydraulic oil
Aluminium roofing sheet making machine Electric Control System:
Language: English and Chinese
Length Tolerance: 3 m±1.5 mm
Computer operating panel: touching screen and button together.
Aluminium roofing sheet making machine Warranty:
1. One year warranty, whole life technical support.
2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary.
Glazed roof tile sheet making machine Contact information

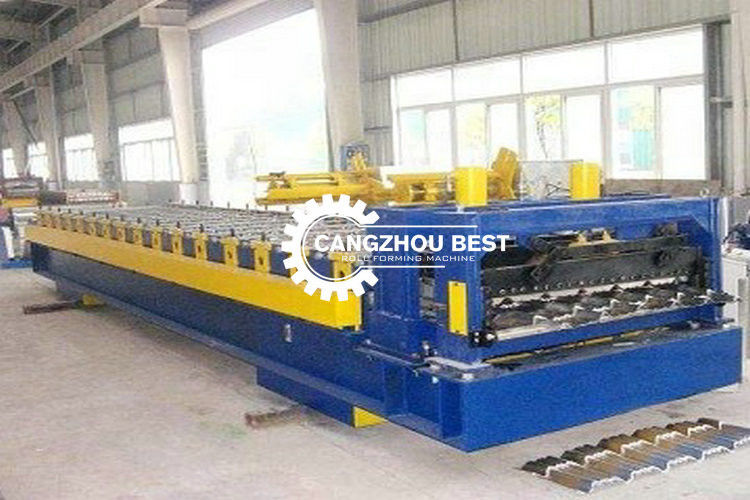

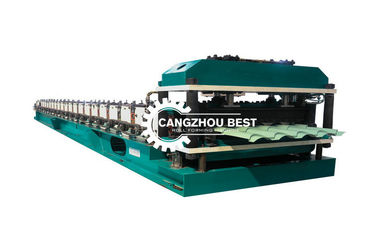

More pictures of our products
Working Flow:
Components of line :
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | Automatic cutting | set | 1 |
| 6 | Output table | set | 1 |
♦ MAIN PARAMETERS:
| 1 | Suitable to process |
Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 1000mm |
| 3 | Roller station | 13 rows |
| 4 | Thickness of feeding material | 0.3-0.8mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | 45# steel |
| 7 | Diameter of shaft | 75mm |
| 8 | Voltage | 380V 50Hz 3phases |
| 9 | Wall thickness of main forming machine | 14mm steel plate |
| 10 | Main forming machine body | 300 mm H steel |
| 11 | servo Motor power | 5.5kw |
| 12 | Size | 7500*1500*1400mm |
| 13 | Weight | About 4.8 T |
Product Description:
| Colored steel glazed tile roll forming machine | ||
| Coil Material | Type | Colored Steel Plate, Galvanized Board, Aluminum Plate |
| Width | 1200mm/1220mm/1250mm according to the profile drawing | |
| Thickness | 0.14-0.6mm | |
| Manual Decoiler | Inside diameter | 500-508mm |
| Coil width | 1300mm | |
| Coil load | 5T | |
| Forming Device | Shaft Material | 45# steel,Φ70mm solid shaft |
| Roller Material | 45# steel with chrome coating | |
| Roller Station | 22rows | |
| Main frame | 300H steel | |
| Board Thickness | 16mm | |
| Chain Transport | 1 inch | |
| Weight | about 5tons | |
| DimeAnti-Counterfeitingnsion | 6500mm*1500mm*1300mm (according to the final profile drawing) | |
| Control System | PLC control system | |
| Total Motor | 5.5kw+4kw(depend on the final profile drawing) | |
| Productivity | 0-20m/min | |
| Voltage | 380V,50HZ,3phase (or as your need) | |
Packing & Delivery
|
Packaging Details
|
Delivery time: about 40-60 days after get advance payment
Packing: we will use pe film for packing or pack it according to customers special request. Suitable ocean shipping Container: 1x40GP |
