Product Details:
|
| Type: | Tile Forming Machine | Shaft Material: | 45# High Grade Steel |
|---|---|---|---|
| Production Capacity:: | 8-15 M/min 10 Piece | Power(W): | About 12KW |
| Roll Material: | 45# High Grade Steel | Frame Material: | 300 H-high Grade Steel |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||
1080 Step Roof Glazed Tile Machine 12 Roller Stations 8 - 12 M / Min Productivity
Glazed roof tile sheet making machine decoiler System:
Loading capacity: 5 T
Uncoiling width: 1250 mm
Inner diameter: 450-550 mm
Glazed roof tile sheet making machine Entry Beach
Glazed roof tile sheet making machine Working Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→auto-pressing→ Auto cutting→Products receiving
Glazed roof tile sheet making machine Roll Forming Machine System:
| Article No. | Item Name | Specification |
| 1 | Feeding width | 1000-1250mm |
| 2 | Thickness of Raw material | 0.3mm-0.8mm PPGI,GI |
| 3 | Roller station | 12 stations |
| 4 | Shaft Diameter | 80mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | GR15 steel |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 8.5 tons |
| 9 | length | 13m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control system | PLC control system |
| 12 | Decoiler weight capacity | 5 Tons |
| 13 | Main Motor | 7.5KW |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1.2 inch |
| 16 | Cutting system | Hydraulic Automatic hydraulic cutter+Front cutter to reduce raw material waste |
Glazed roof tile sheet making machine Hydraulic Station:
Hydraulic motor Power: 3kw
Hydraulic oil: 46# hydraulic oil
Glazed roof tile sheet making machine Electric Control System:
Language: English and Chinese
Length Tolerance: 3 m±1.5 mm
Packaging and Delivery :
| Packaging Details: | Plastic package outside the machinery for colored glaze steel roofibg sheet, make coil inside in case the roller and shaft got rusty. Steel wire fix the machine into the container, in case any damage when shaking on the sea. The machine is put near the container door, then the customer can take out the machine easily |
|---|---|
| Delivery Detail: | 30 DAYS |

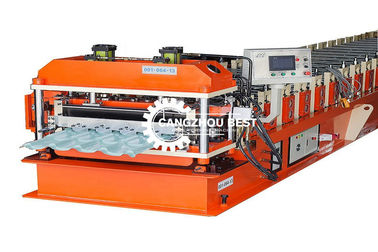

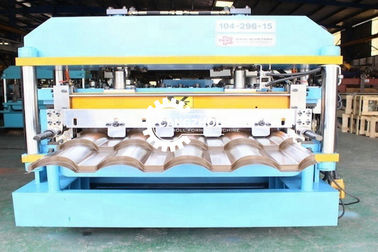

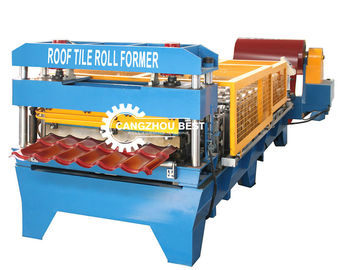

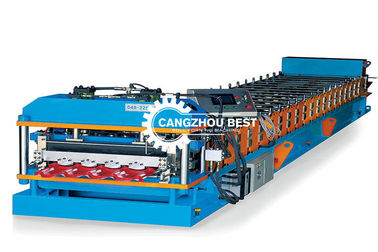

MACHINE PICTURE
