Product Details:
|
Diameter Of Shaft: | 70mm Or As Your Requirement | Main Frame: | 300 H Steel |
---|---|---|---|
Hydraulic Station Powe: | 3.7kW | Hydraulic Pressure: | 10-12MPa |
Color: | Bule Or As Your Require | ||
High Light: | roof panel roll forming machine,steel roof tile forming machine |
Main technical parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: as drawing
(4) Feeding width: as design
(5) Main motor power: 4kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 16 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 350H steel
(11) Medium plate thickness: 16mm
(12) Control systerm:Delta PLC computer control with inverter and touch screen
(13) Cutting blade material:Cr12
(14) Speed:about 3meter/min
(15) Drived by Chain:1inch
(16) Machine size (mm):6500*1300*1400mm
(17) Machine weight:about 2Ton
Raw material | |
Processing material |
Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
Processing thickness (mm) | 0.3-1.0mm or as your customized |
Material of rollers |
High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
Material of shafts | 45# steel |
Diameter of shafts | 70mm or as your customized |
Forming speed | 3-4 m/min or as your customized |
Under frame | 350 H-beam |
Sidewall | 16mm |
Connect bar | 25mm, zinc plated |
Forming steps | 10-18 or as your customized |
Control system | Delta PLC and Inverter |
Suitable power | 380V, 50 Hz, 3 phase or according to your need |
Drive mode | Chain and sprocket, chain size 1 inch |
Main motor | 3-5.5kw |
Hydraulic pump station | 3-5.5kw |
Cutting model | Hydraulic profile cutting |
Weight of the machine | 3.5 ton -6 ton |

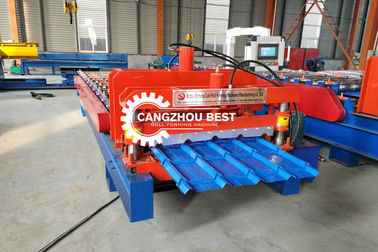

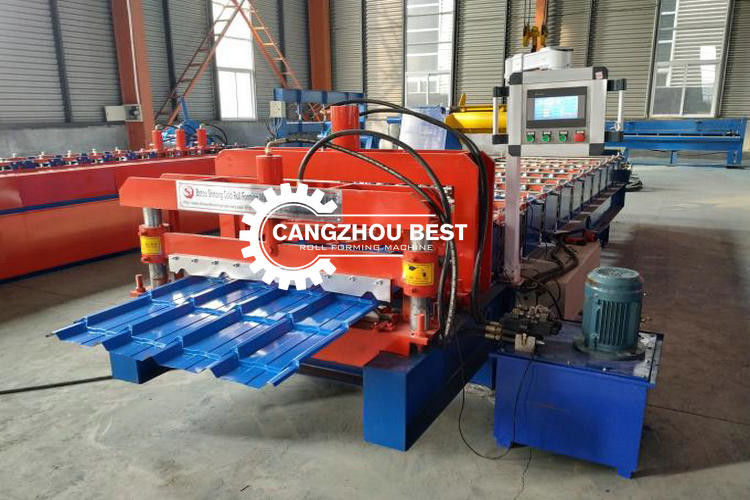

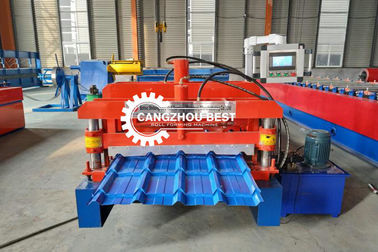

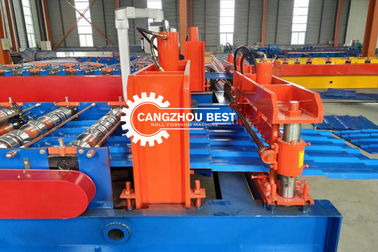

machine picture
3.Standard export packing and delivery
1. Main body of roll forming machine and decoiler is nude packing.
2. Rollers, shafts, PLC, pump and cutter are packed with water-proof plastic film, spare parts in carton box.
3. One set of machine needs a 20'container to shipping.
Some others design for your choose
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. about 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
