Product Details:
|
| Material: | PPGI/GI | Control System: | PLC Control Box |
|---|---|---|---|
| Conveying Device: | Chain Reciprocating | Air Cooling Device: | 1 Set ; Power: 200w |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||
Steel Plate Glazed Roofing Sheet Roll Forming Machine 1000mm Feeding Width
Technical parameters of glazed metal tile roofing sheet roll forming machine with PLC :
(1) material: color steel sheet, galvanized sheet, aluminium sheet
(2) Thickness of the plate : 0.3-0.8mm
(3) Input width of the plate: 1000mm
(4) Effective width of the plate :828mm (
5) Productivity :8-12m/min
(6) Roller steps :9 rows
(7) Roller material: 45# steel
(8) Diameter of active shaft: 70mm
(9) Wall thickness of the main forming machine: 12mm steel plate
(10)Main forming machine body : 250mmH steel
(11) Transmission chain is1’’; 828/1035-207-28 Reducer is 5.5kw Xingxing Cycloid which works stably and no noise.
(12) Cutting hydraulic systerm :the motor power is 3kw, no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure:6200mm*1400mm*1500mm
Working flow of glazed tile roofing sheet roll forming machine
Main machine parameters:
|
NO |
Main parameter |
|
|
1 |
Configurations |
manual decoiler, guiding platform, main machine of roll forming, cutting device, output table, electro-motor, hydraulic station, PLC control system |
|
2 |
Processing material |
aluminium sheet/galvanized steel sheet/color steel sheet |
|
3 |
Material thickness |
0.3-0.8mm |
|
4 |
Feeding width |
1000mm |
|
5 |
Effective width |
760mm |
|
6 |
Main motor power |
4kw |
|
7 |
Pump power |
4kw |
|
8 |
Shaft diameter |
75mm |
|
9 |
Forming steps |
13 steps |
|
10 |
Main frame |
300H steel |
|
11 |
Control systerm |
PLC computer control with inverter |
|
12 |
Power supply |
380V, 3 Phase, 60Hz |
|
13 |
0veral sized |
6500mm*1500mm*1200mm |
|
14 |
Total weight |
3.5 Tons |
|
15 |
Cutter material |
Cr12 mould steel with quenched treatment |

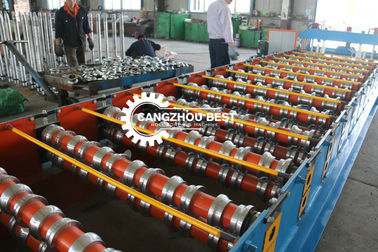

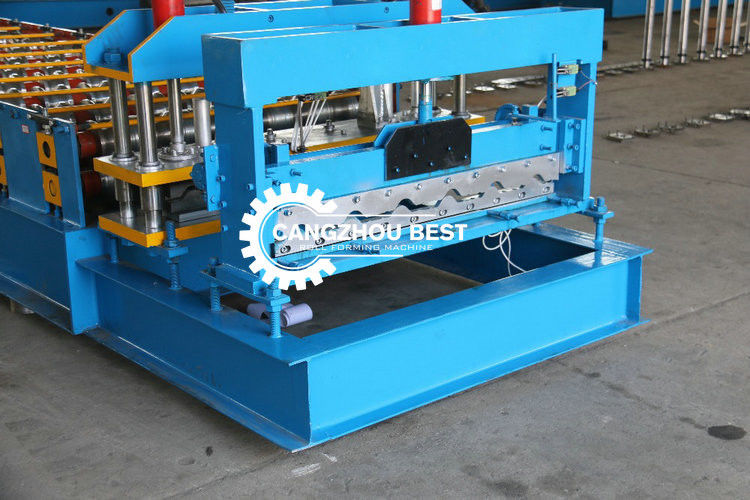

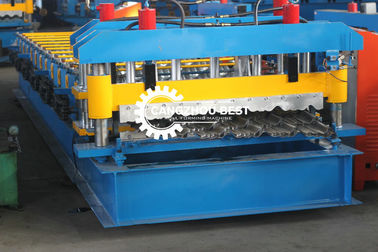

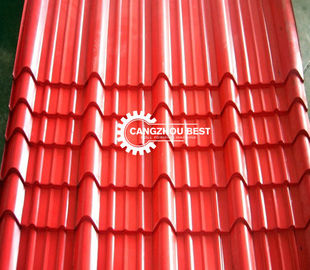

More Picture of the machines:
