Product Details:
|
| Product Name: | Product Name | Power: | 5.5KW+5.5kw |
|---|---|---|---|
| Decoiler: | Manual Or Hydraulic | Station: | 19 Stations |
| Steel Thickness: | 0.4-0.6mm | Drive: | By Chain |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||
1.Main parameters of step tile :
Parameters of raw material
| Material | Thickness | I.D | Yield Strength |
| Q235 gi&ppgi& galvalume |
0.25-0.7mm | 508mm | <=235mpa |
Decoiling → Roll Forming →Hydraulic cutting→Collecting table

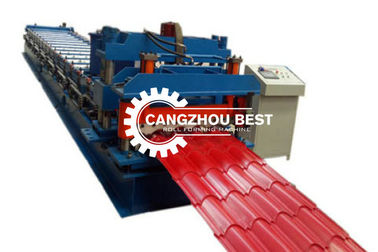

2.Photos of Machine:
68991d7c612bc495805cafc1c9.jpg” width=”700″ height=”566″ title=”Roll Forming Machine” alt=”Roll Forming Machine” />
3.Technology parameters:
The weight of machine is about3.1tons.The total dimension of machine:6800(L)*1200(W)*1500mm(H)
3.1Manual decoiler:
Capacity of uncoiler:5tons
Expansion of segment:Manual
Rotation of segment:Manual
Number of segment:4
Range of segment expansion:480-520mm
Operation method:Manual
Qty: 1
3.2 Guiding system:
To keep the material straight
Entrance and adjustable wheel: 2rolls
Qty: 1
3.3Main forming machine:
Coil thickness:0.25-0.7mm
motor type: 3 phase asynchronous motor
Main motor power:4kw+3kw(normal speed),
Approx.13groups roller including
Roller : S45C with quenching treatment,Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
Shaft:Diameter of max shaft: ø70mm(hardening and tempering)
Transmission type:by one inch chain
Qty: 1
3.4 Hydraulic cutting:
Material of blade: Cr12Mov,HRC58-62
Length measuring: Automatic encoder length measuring
Type of cutting:Cutting after forming:Cut the sheet after roll forming to required length.No need to change mold for different sizes
Cutting motion:The main machine automatically stops and the cutting will take place.After the cutting,the main machine will automatically start.
Power of motor:3kw
3.5 Product support frame
Size: L 3m x W0.5m
Looking for ideal Step Tile Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Africa Step Tile Forming Machine are quality guaranteed. We are China Origin Factory of Africa Roof Cold Roll Forming Machine. If you have any question, please feel free to contact us.
Product Categories : Roof And Wall Panel Roll Forming Machine > Roof Tile Roll Forming Machine
Main Techincal Data:
| Model Number | 840 |
| Size | 7000*1500*1600mm |
| Weight | 3500KGS |
| Motor Power | 5.5KW |
| Hydraulic Power | 3.7KW |
| Voltage | 380V/50HZ/3PH |
| Forming Steps | 12steps |
| Processing Speed | 3-5m/min |
| Thickness | 0.3mm~0.6mm |
| Feeding Material Width | 1000mm; |
| Effective Width | 840mm |
| Height of Roofing | 25mm |

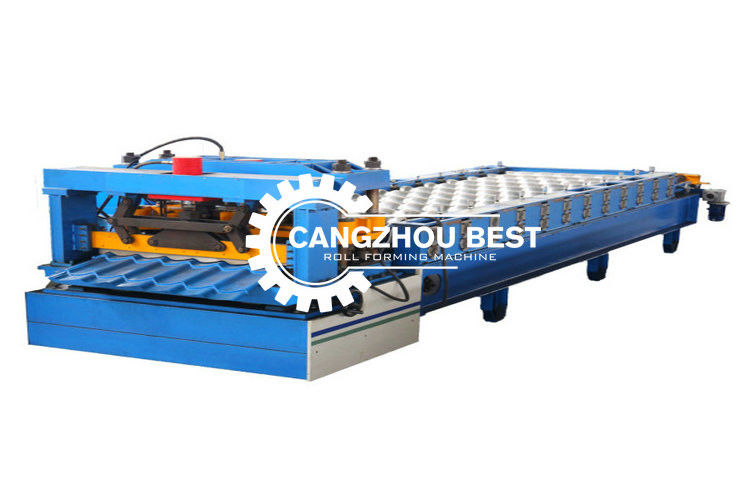

main machine pictures:
